Recallable. Transparent.
Digital Patch Bay.

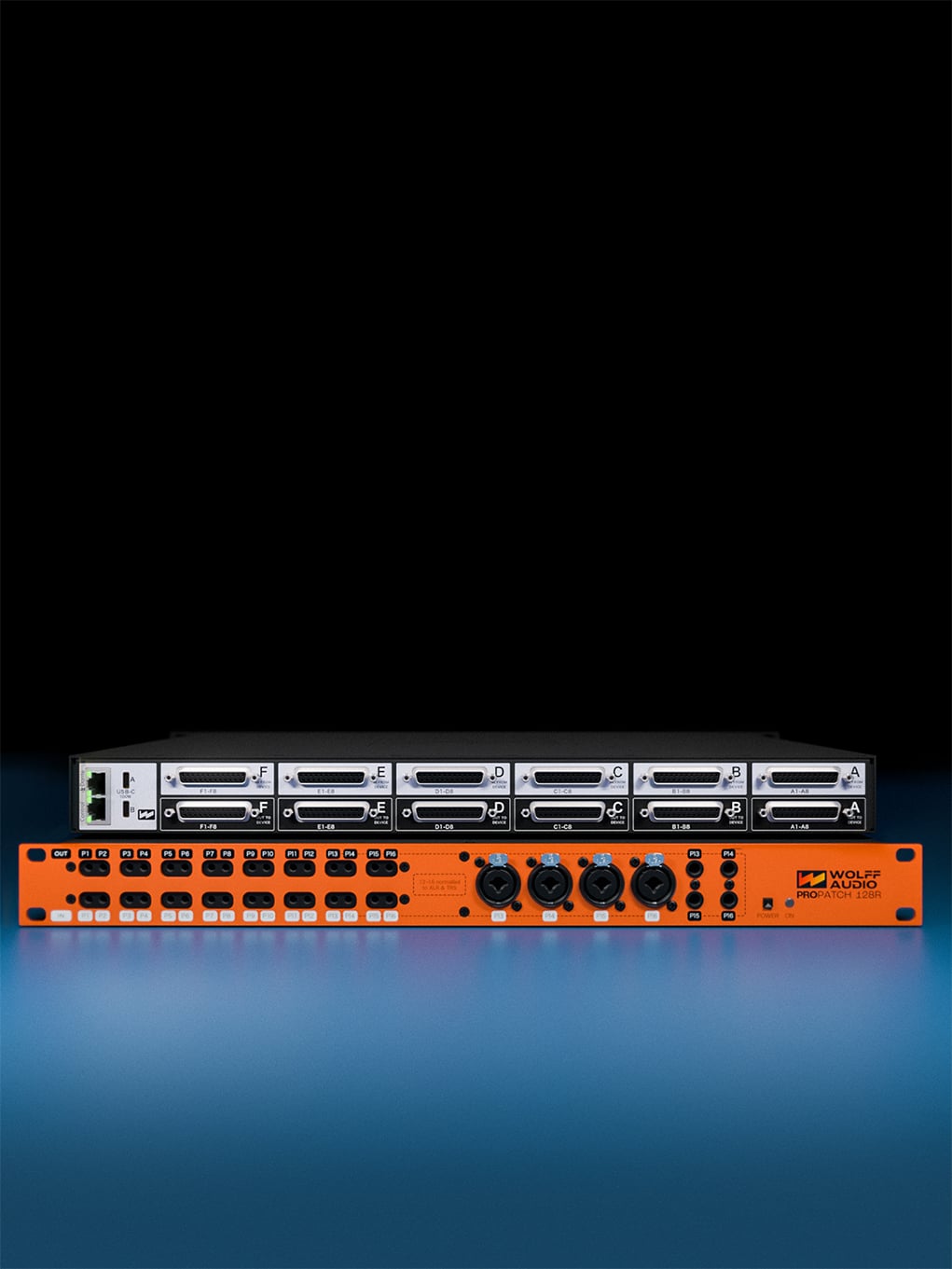

ProPatch, the no-noise, no-crosstalk, no-distortion patchbay. Software controlled, with recallable routing of complex signal chains.

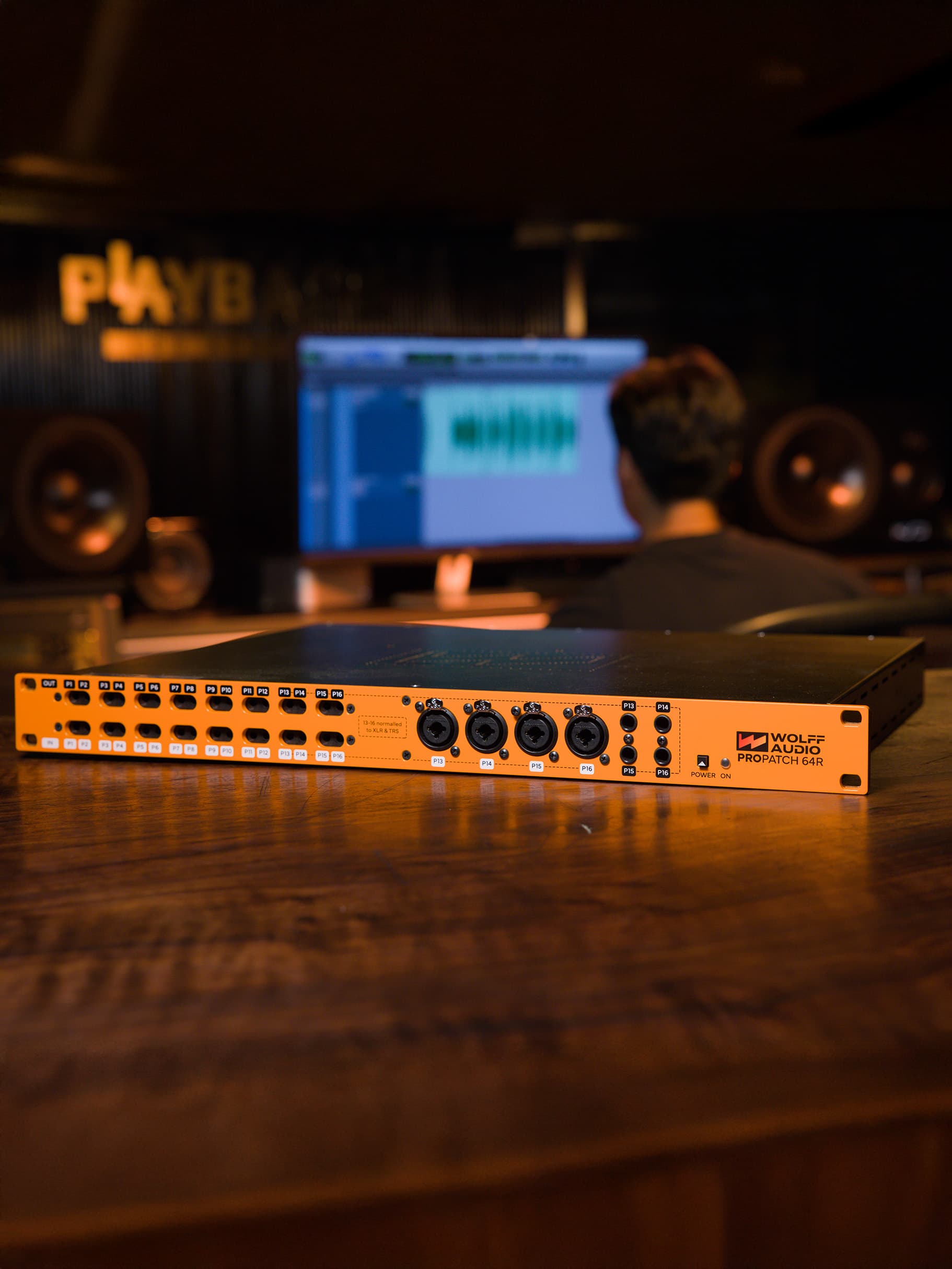

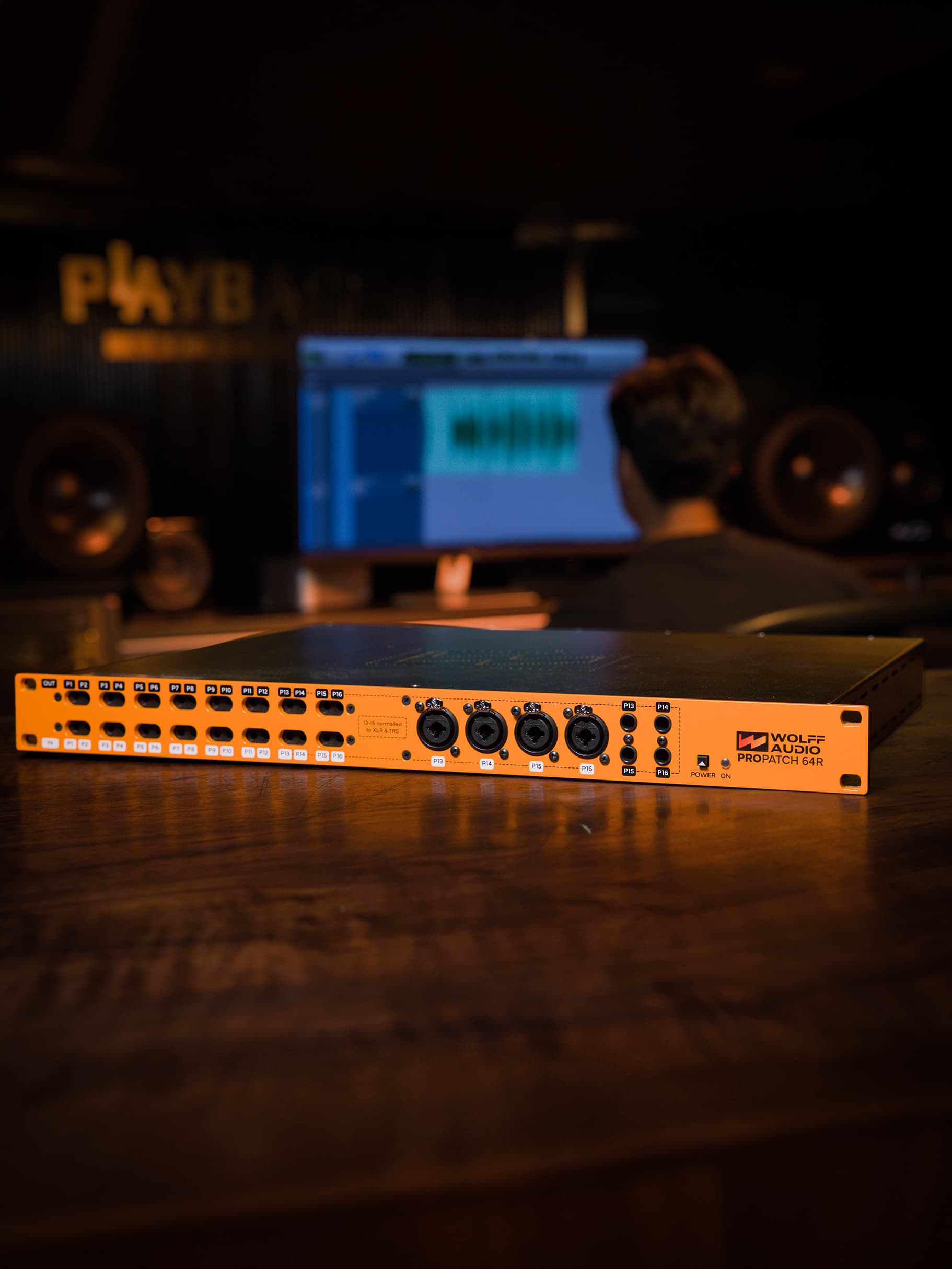

A patch bay shouldn't be a compromise.
At the heart of every ProPatch is Wolff Audio’s proprietary relay based, software controlled switching architecture.
A patchbay’s role is to route signals without affecting them—a purely passive connection. ProPatch contains no buffers, amplifiers, or active electronics in the signal path.
Electronic switches
vs latching relays.
The ProPatch uses reliable, trusted, transparent relays. Our competitors don't!
Noisy electronic switch
The chip is built for line level, not mic level, so low-output microphone signals are more affected by its noise floor. It also cannot pass DC, which means no phantom power without extra circuitry. In larger chains, those limits stack up. Every trip through the patchbay adds more noise and distortion, all under a +22dBu headroom ceiling.

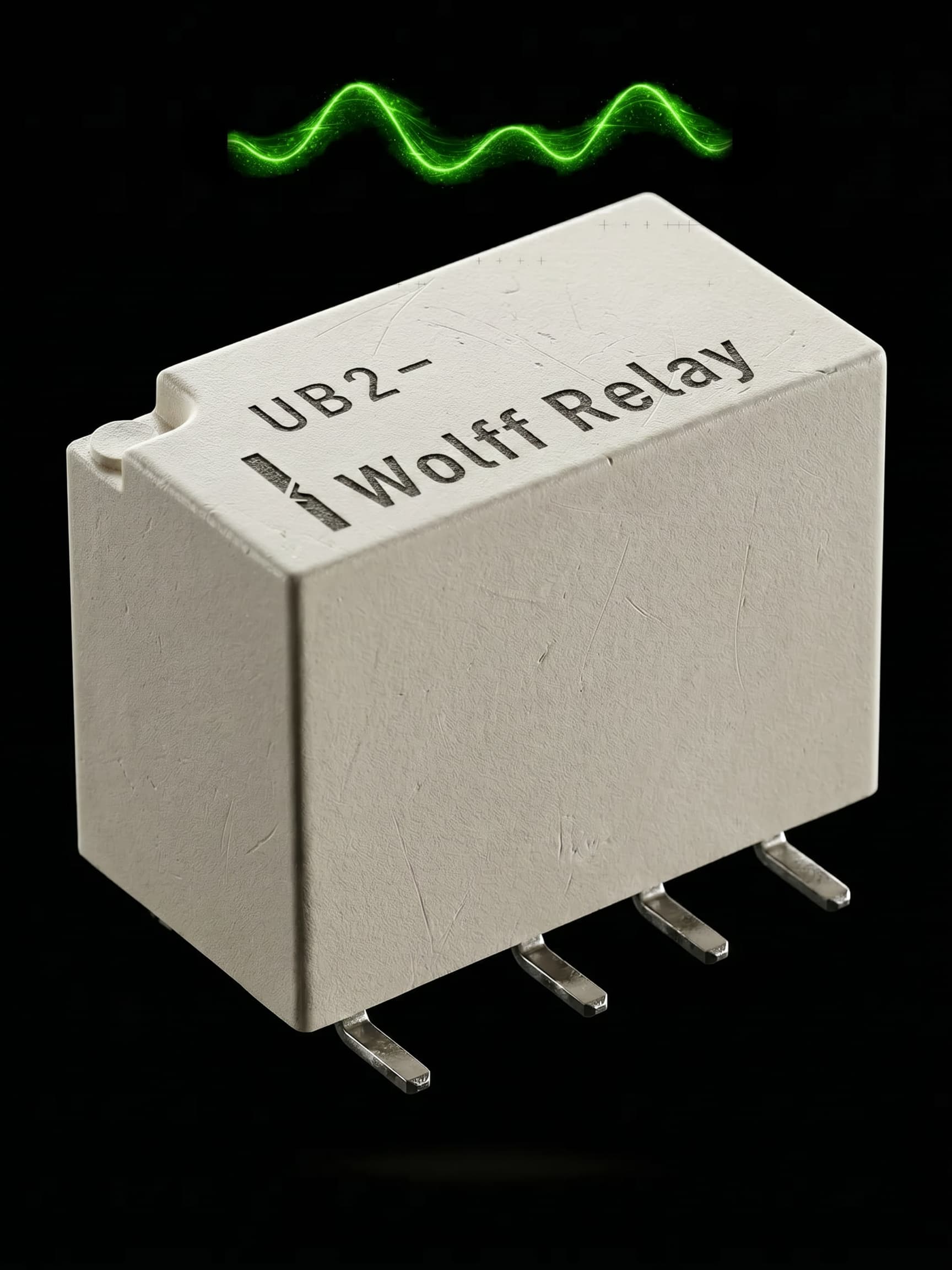

Latching noiseless relay
Relay switching is highly reliable, low power, and fanless. Because the path is essentially just wire, it can route audio, mic level, phantom power, control voltage, digital audio, and MIDI. Latching relays also preserve routing if power is lost. Routing is controlled in the web app over USB-C or Ethernet, with presets that recall instantly on startup.
Manual patching
vs ProPatch.

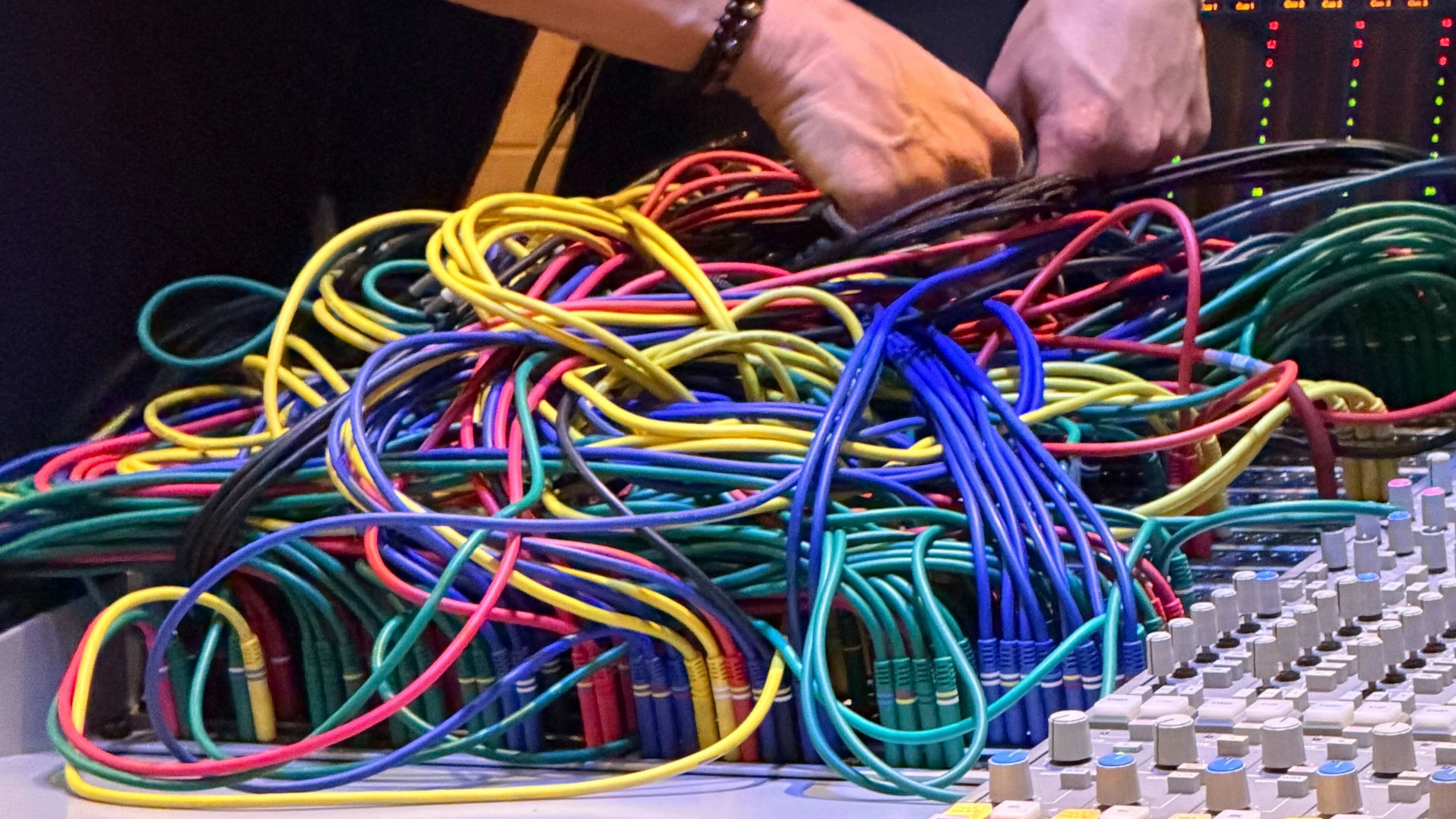

Manual Patching
❌ Interrupts Creative Process ❌ Error Prone ❌ High Setup Overhead ❌ No Documentation

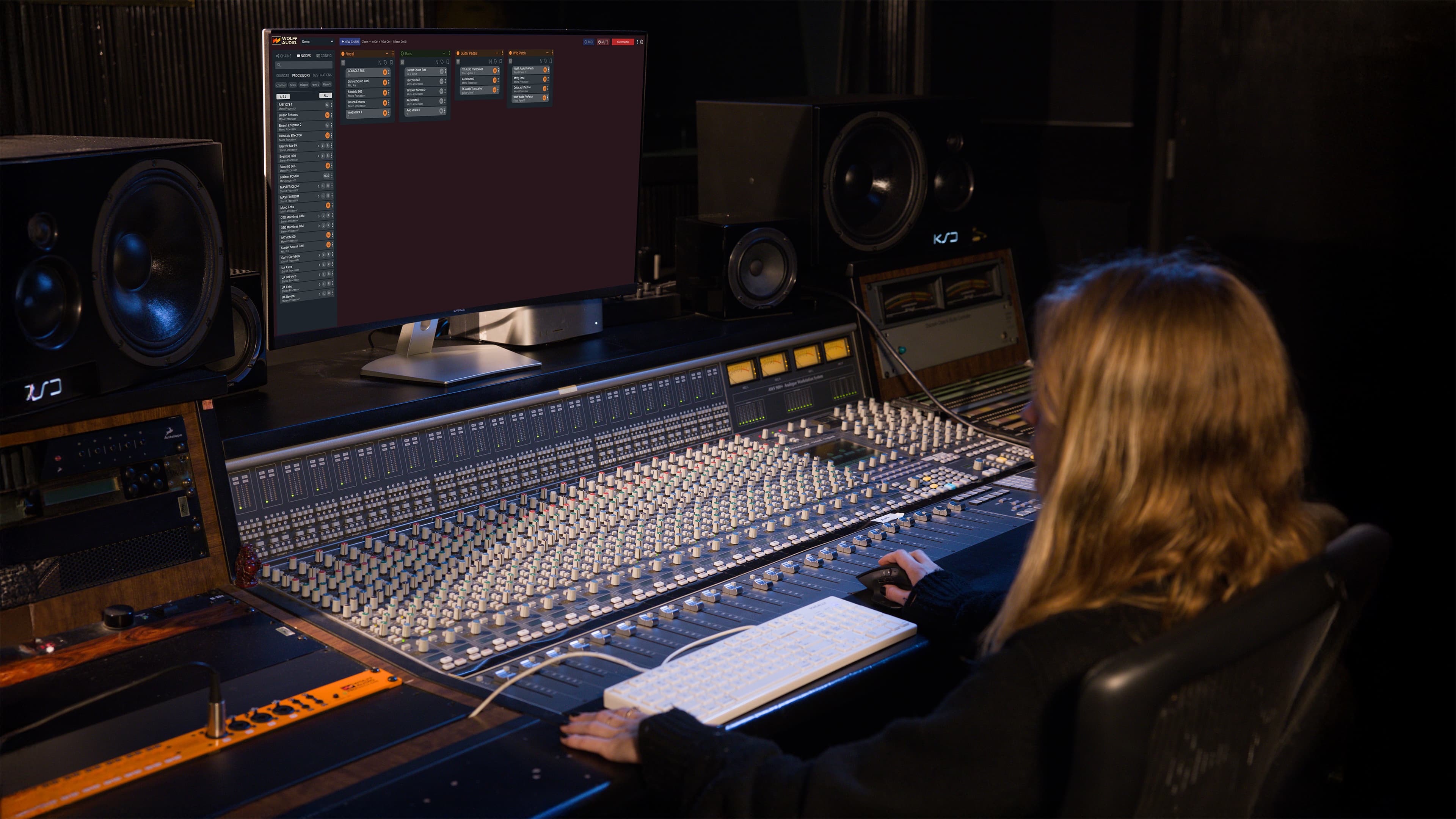

ProPatch - Digital Patch Bay
✅ Instant Patch Recall ✅ Quick A/Bing ✅ One-and-Done Setup ✅ Self Documenting

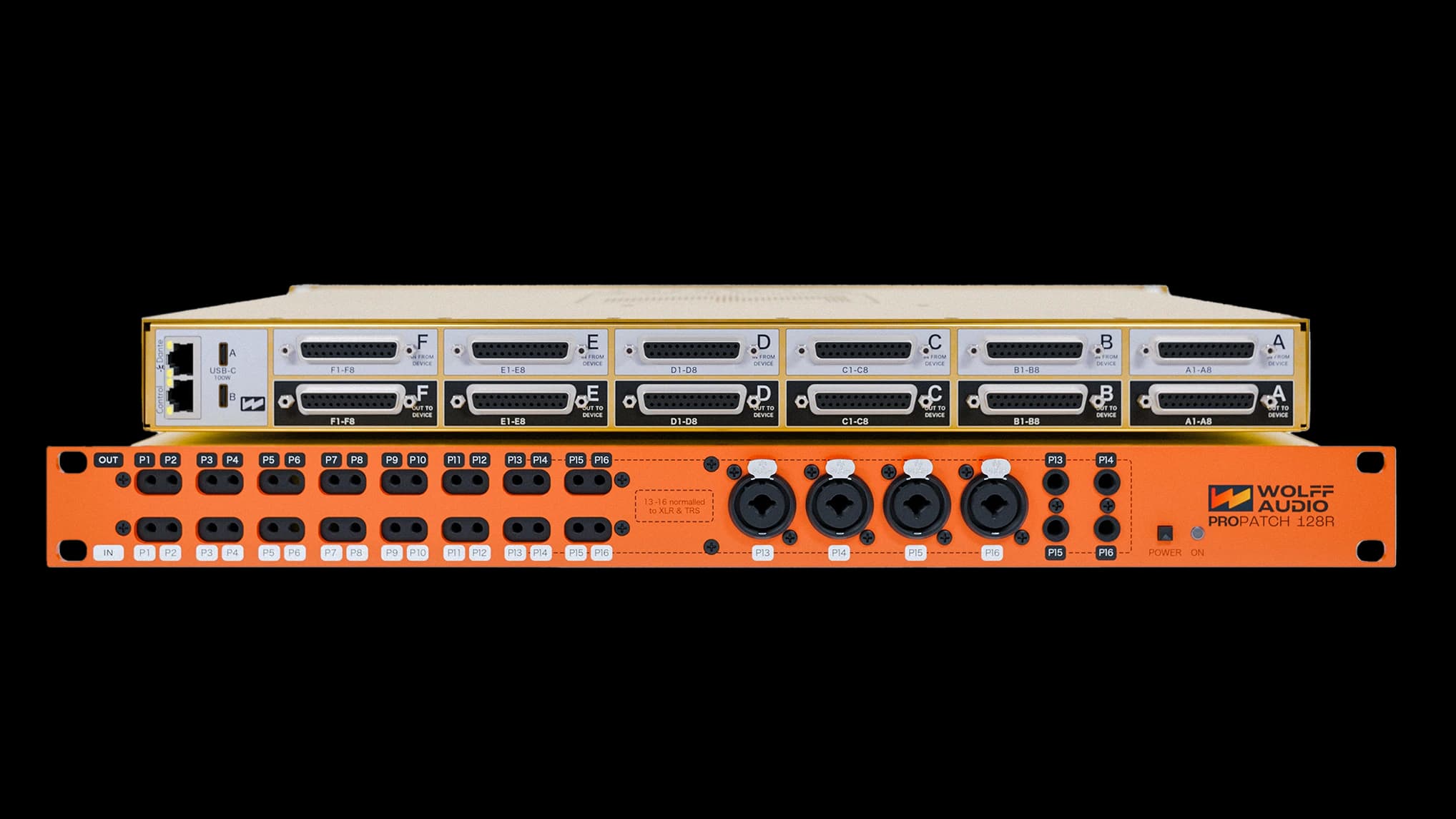

ProPatch I/O at a Glance:
Explore the Options.
ProPatch Models
Professional audio interfaces for every workflow

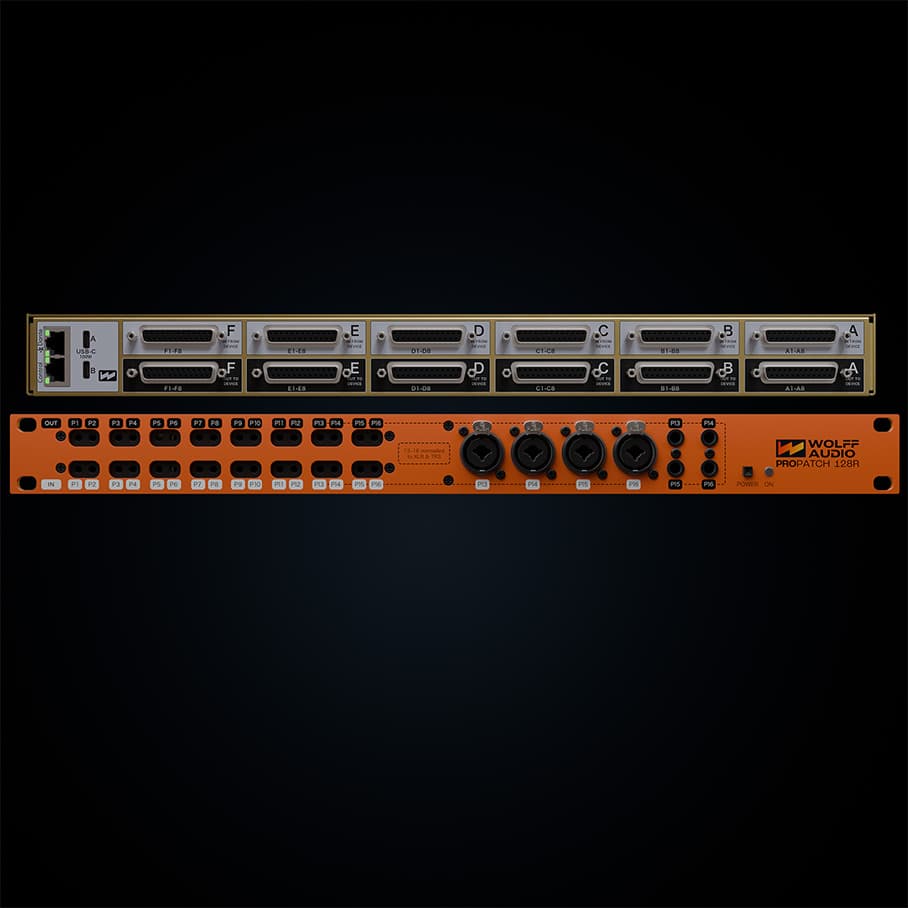

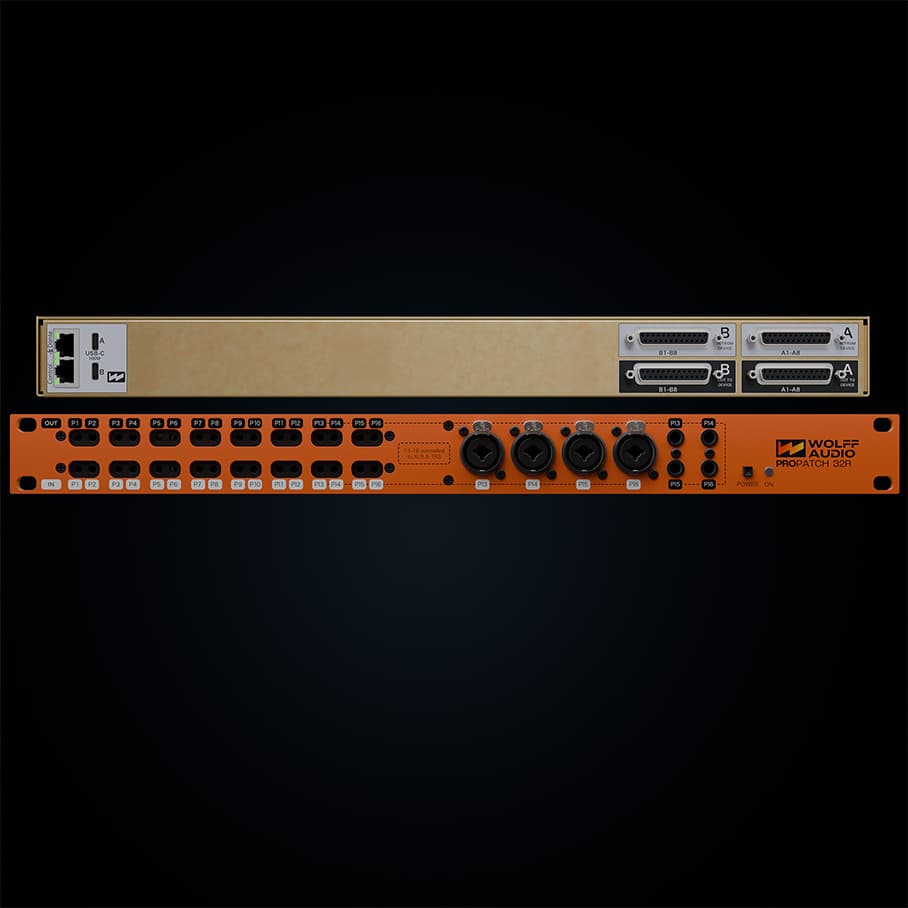

The Studio Standard Patch Bay

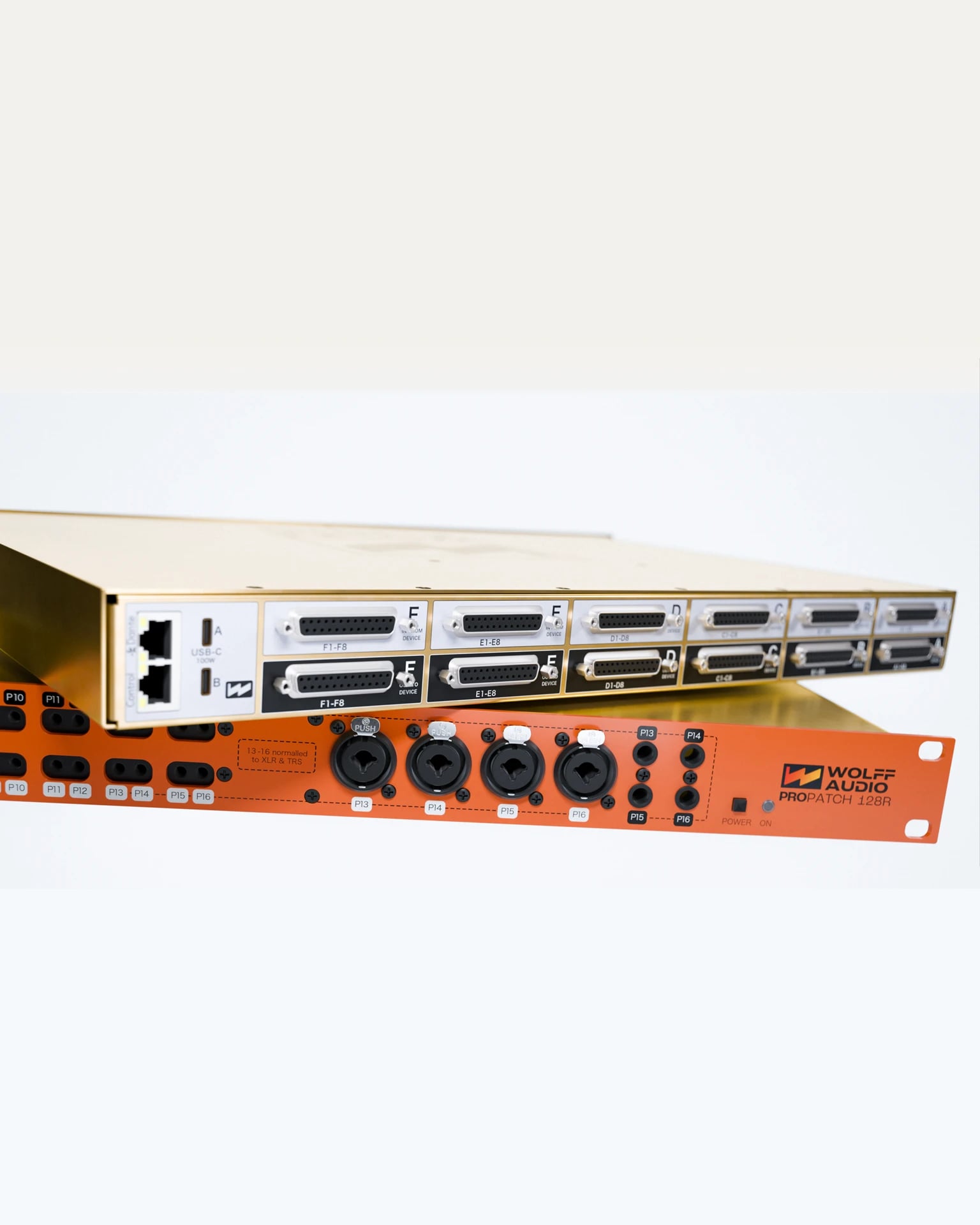

Our flagship patchbay. Plentiful I/O for those running a healthy amount of outboard gear, with no compromises on signal integrity.
Compare Models

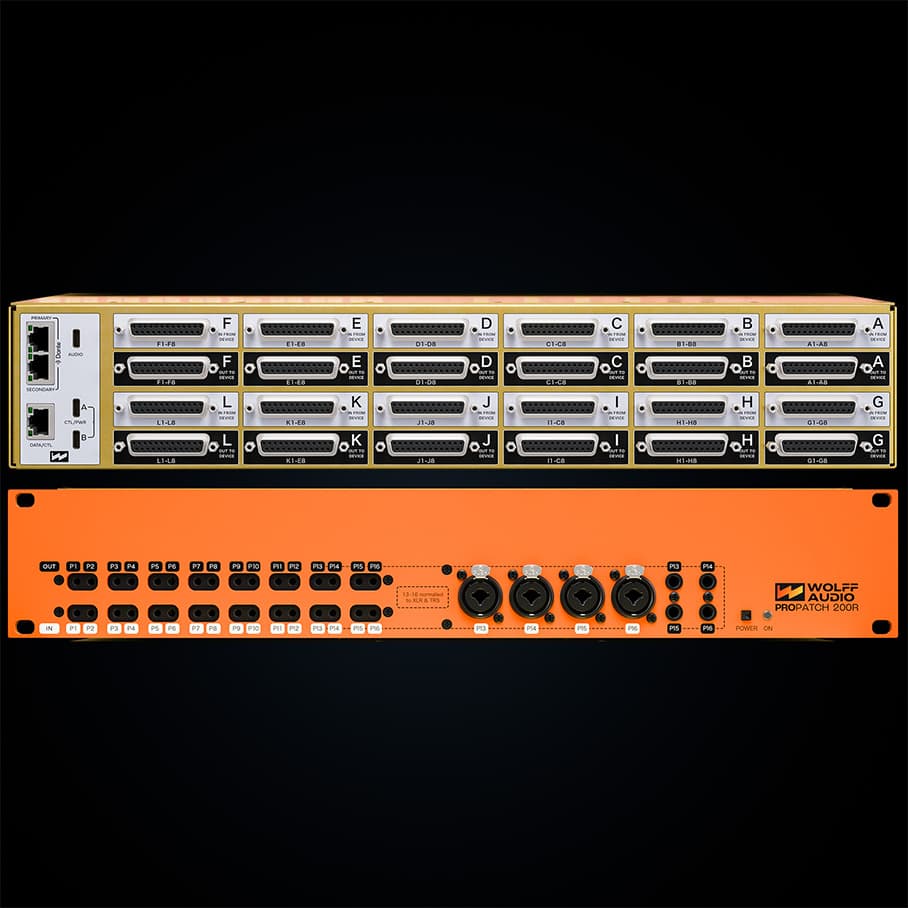

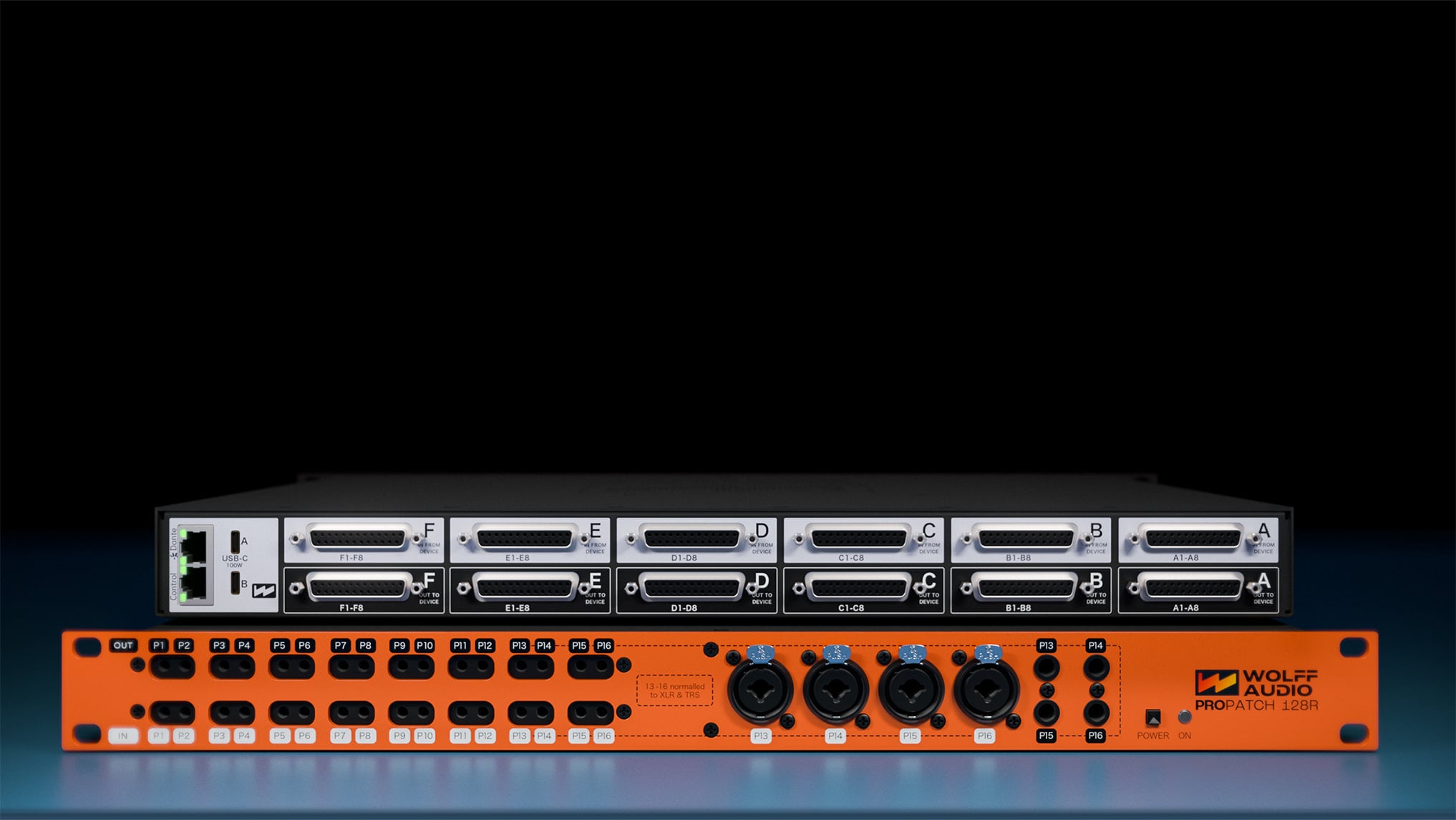

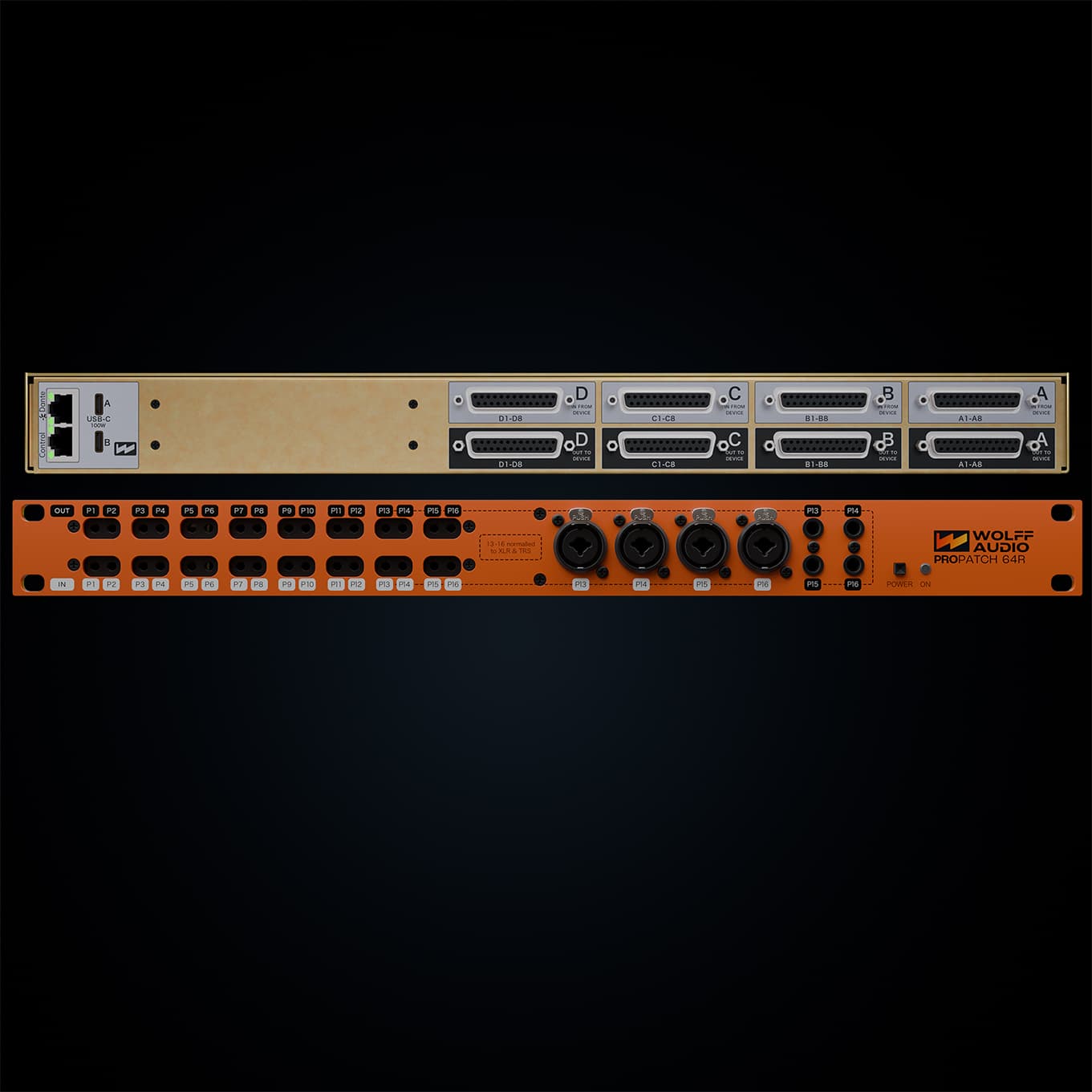

32R | 64R | 128R | 200R | |
|---|---|---|---|---|
| Patch Points | 32 | 64 | 128 | 200 |
| I/O | 16 in / 16 out | 32 in / 32 out | 64 in / 64 out | 100 in / 100 out |
| Rack space | 1U | 1U | 1U | 2U |

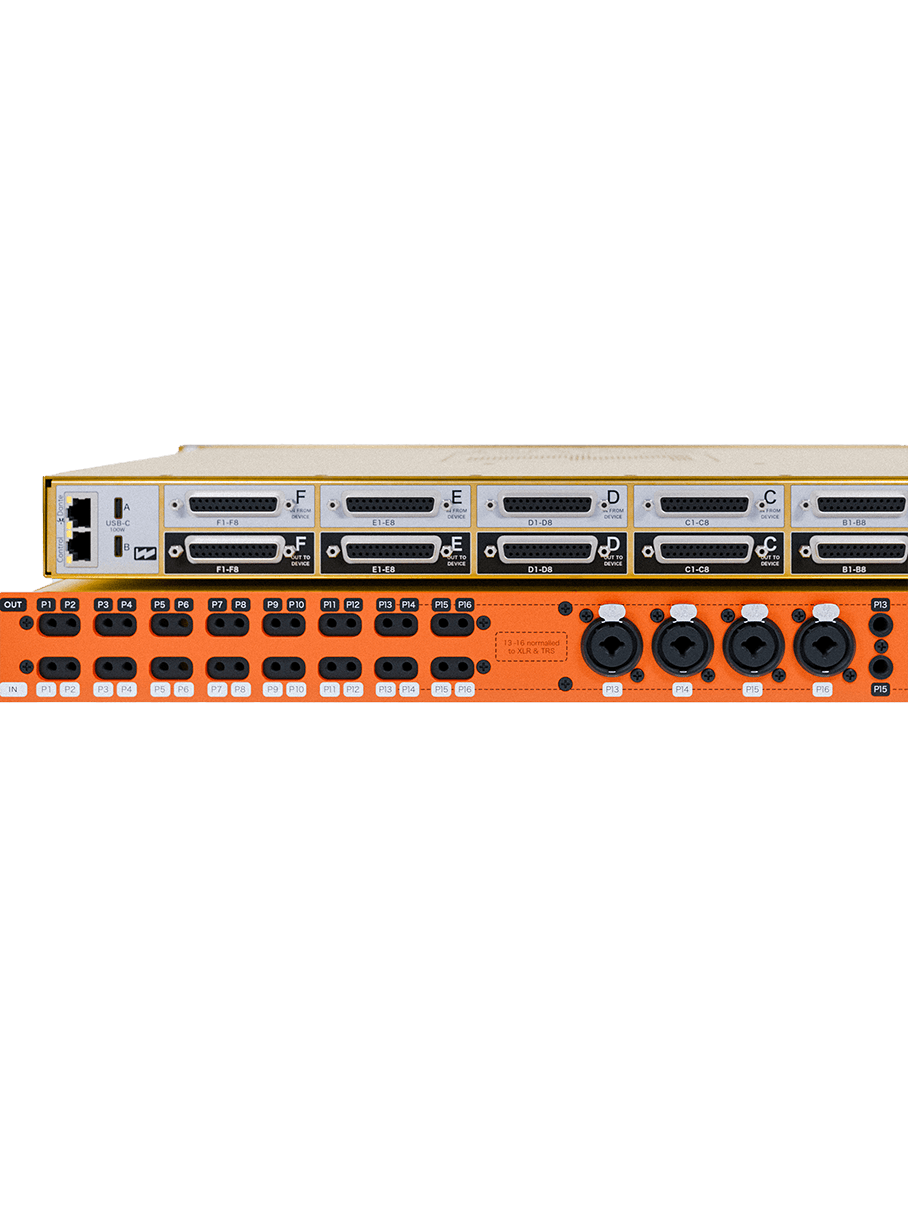

| Rear Connections | 4 x DB25 | 8 x DB25 | 12 x DB25 | 24 x DB 25 |
| Front Connections | 16 TT I/O + 4 XLR/TRS Jacks | 16 TT I/O + 4 XLR/TRS Jacks | 16 TT I/O + 4 XLR/TRS Jacks | 16 TT I/O + 4 XLR/TRS Jacks |
| TT Patch Bay Integration |
Award Winning Approval.
Pro Engineers Around The World Are Giving Their Approval.
I'm not the inspiration for it, but as a user, some of the things that I wanted it to do were things they took to heart: the relay-based operation and the screen-based control
Pro Software.
Never Out-of-Date.

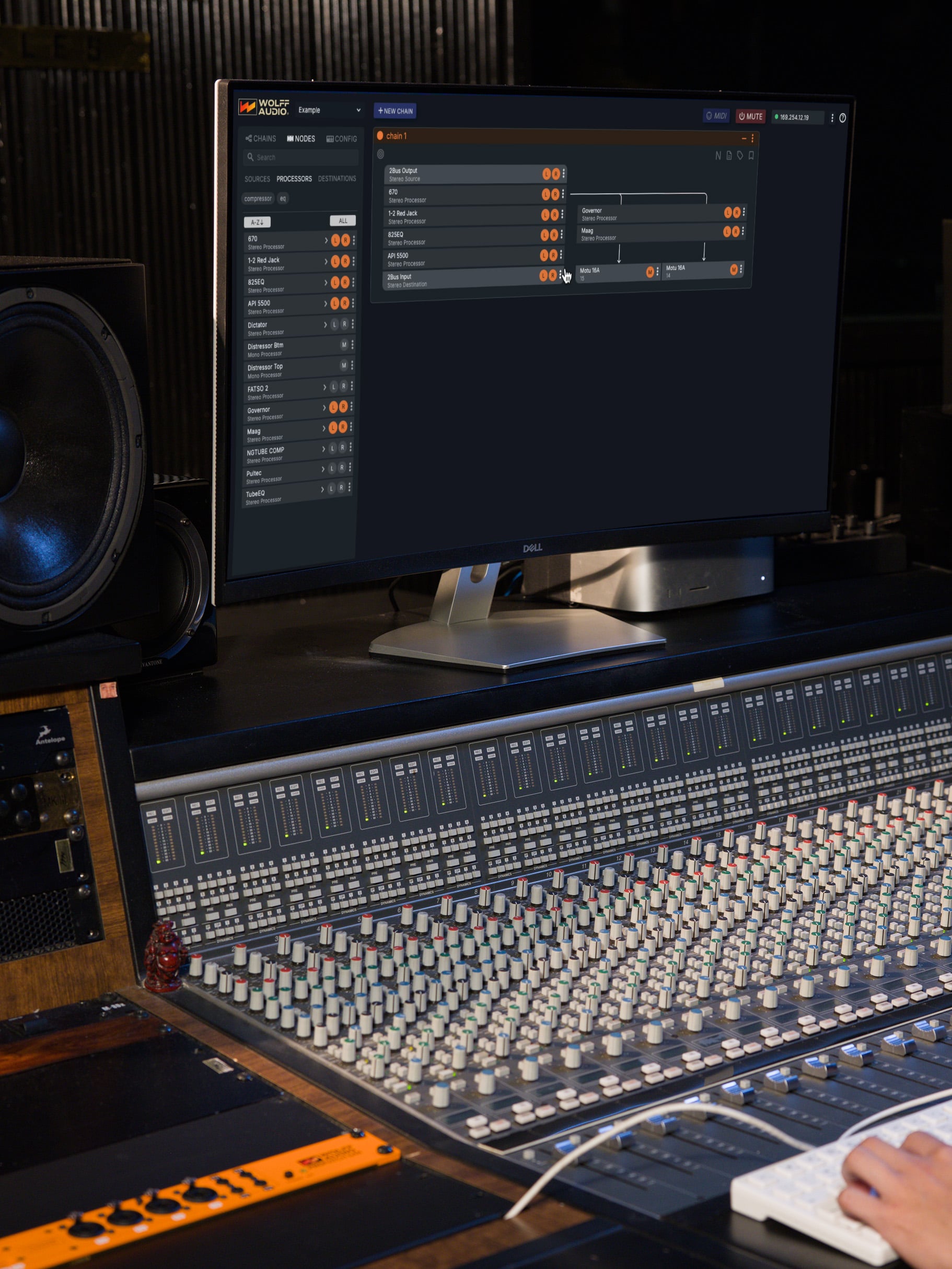

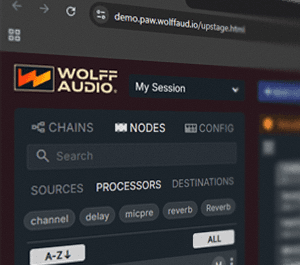

Purpose-Built Software

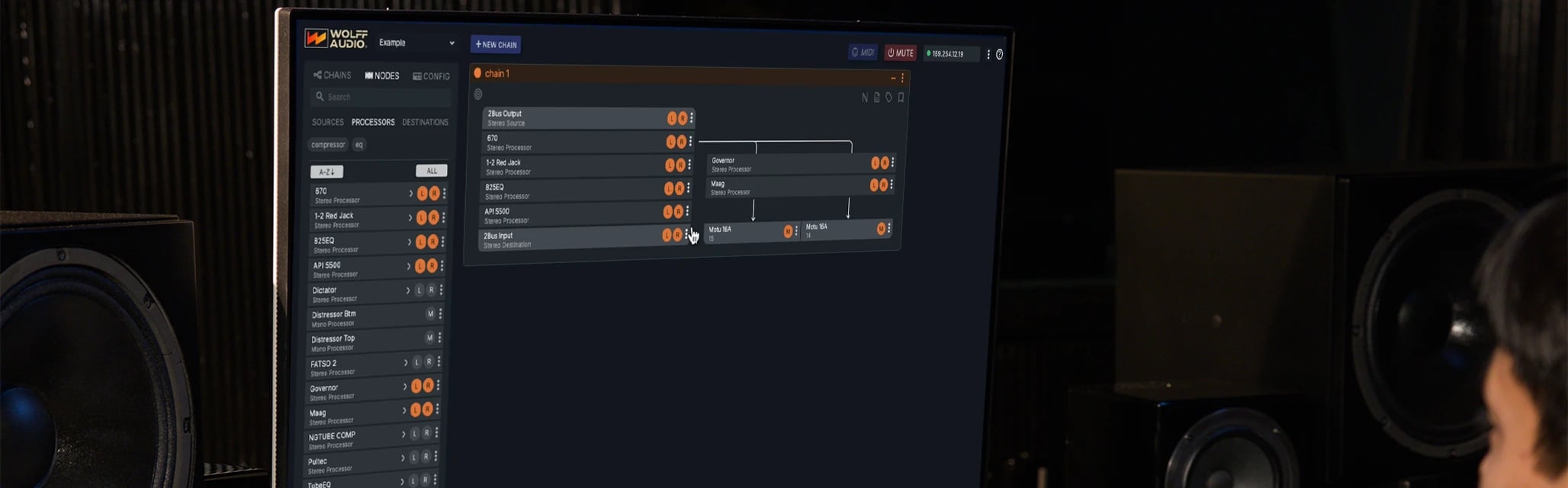

The ProPatch control software is designed in-house
Created from the ground up to facilitate a seamless patching experience, with input from best-in-class audio engineers.
Easy Chain Building

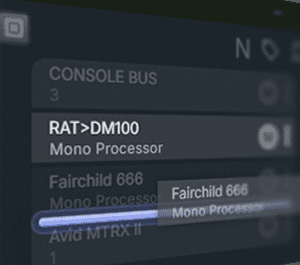

Drag-and-drop chain building
The software lets you create chains visually by dragging nodes, reordering processors, duplicating chains, building mults/parallel paths, and turning chains on or off.
It also tracks hardware usage so the routing stays valid and automatically warns or resolves conflicts when a piece of gear is already in use.
instant recall

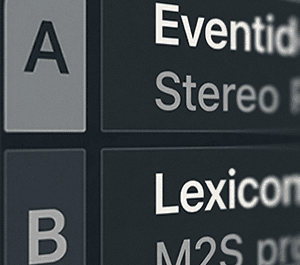

A/B grouping for ultra-fast gear auditioning
You can build A/B, A/B/C, or larger comparison groups to instantly switch between compressors, EQs, mics, or even full chain options.
This is huge because it lets you compare gear in context without physically repatching and without losing the sonic reference in your head.

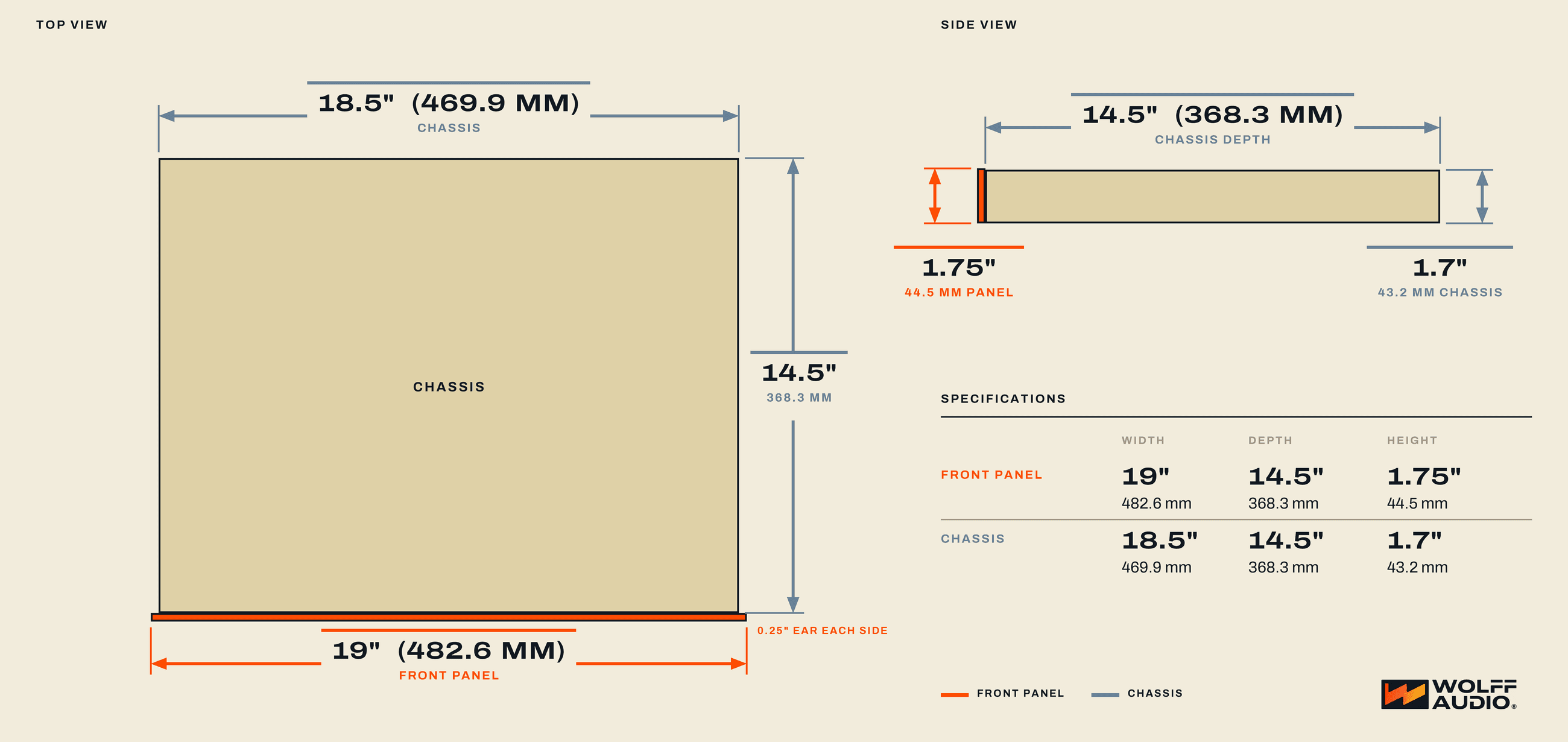

ProPatch Dimensions
Ready to Upgrade Your Studio?
Step into the Age of the ProPatch and Transform Your Studio.
