Intuitive, Console-Grade
Monitor Control.
Precision monitoring. Every decision within reach.

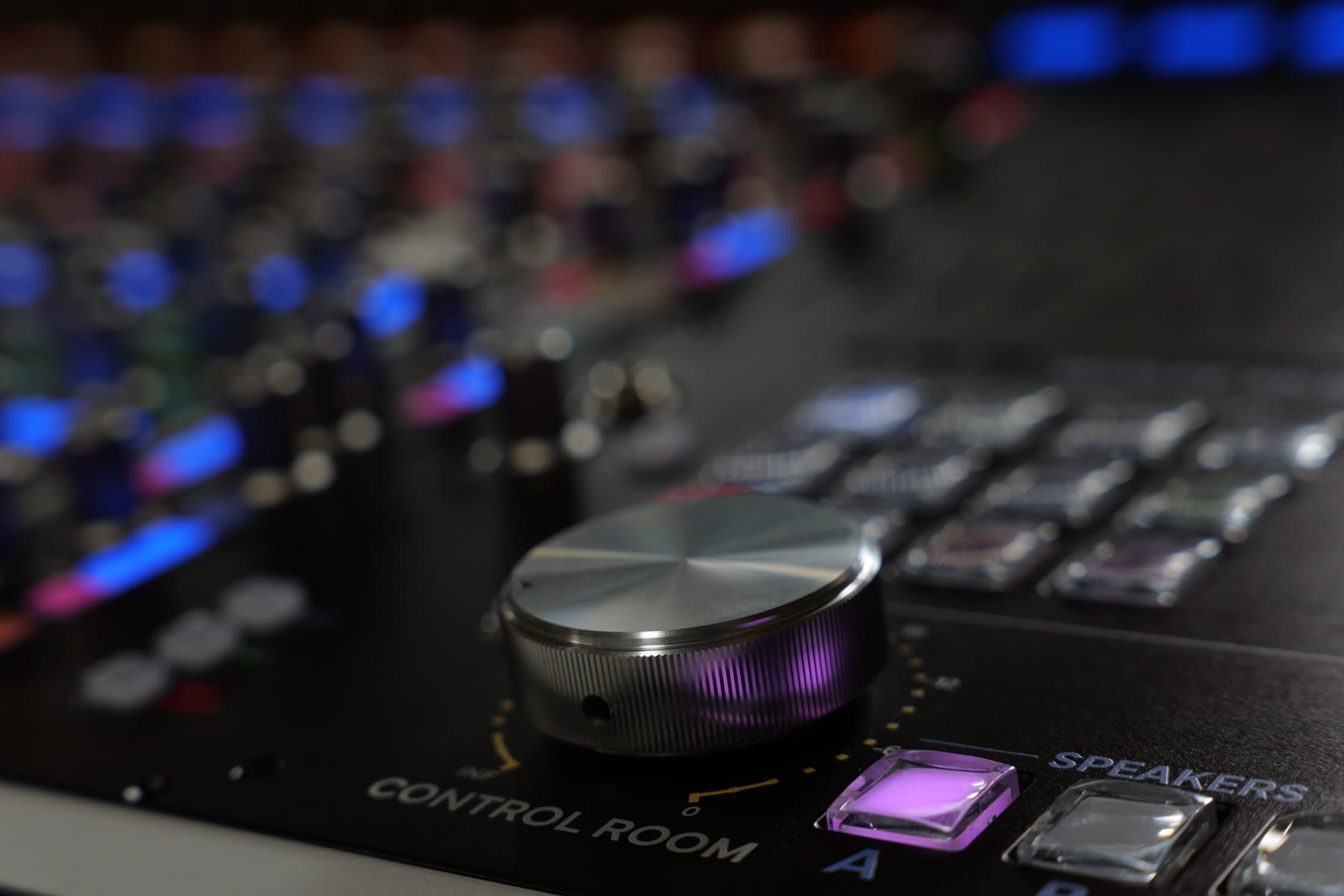

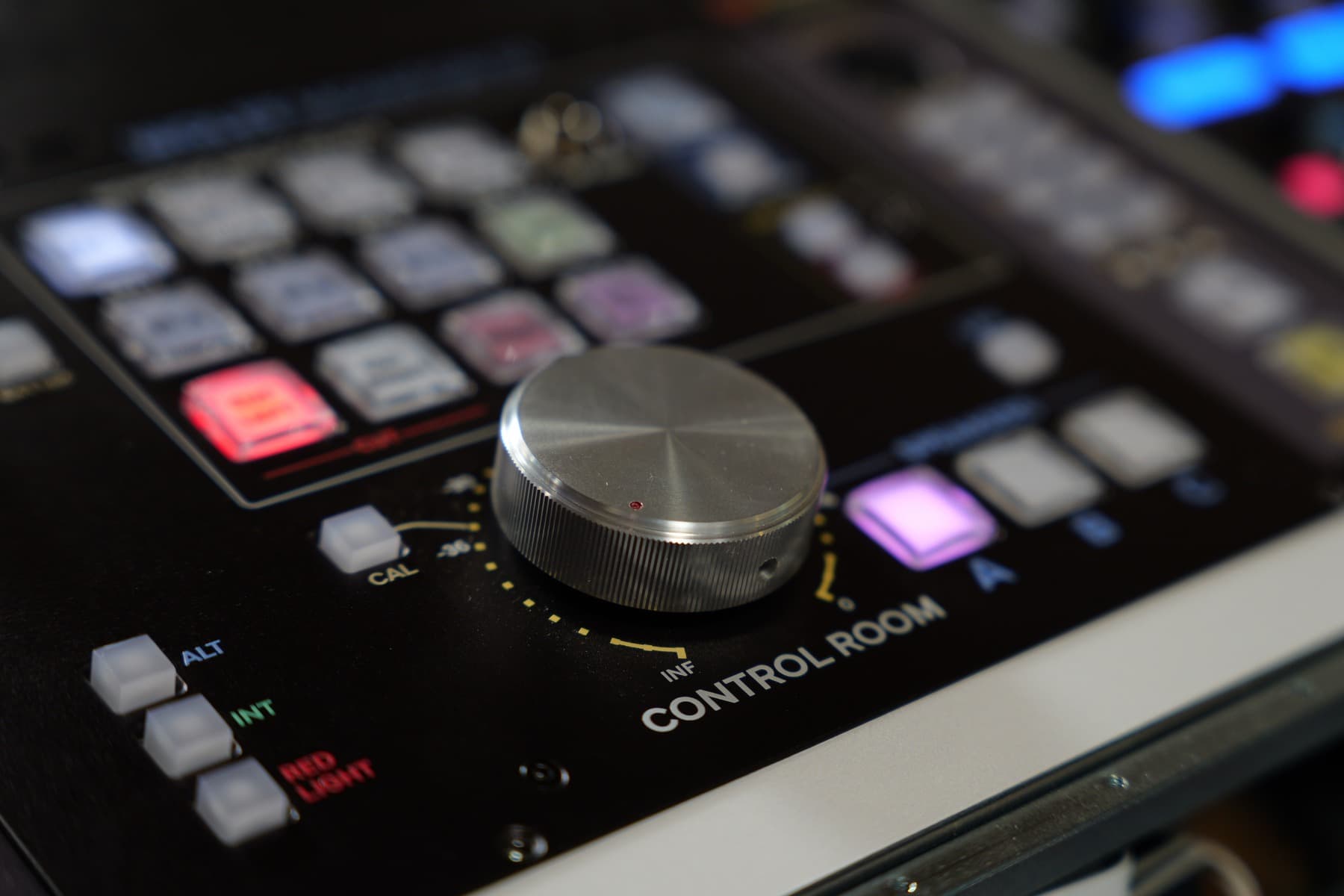

Return to your reference.
A motorized control drives relay-stepped gain. Store your chosen listening level, then recall it when it is time to make the next decision.

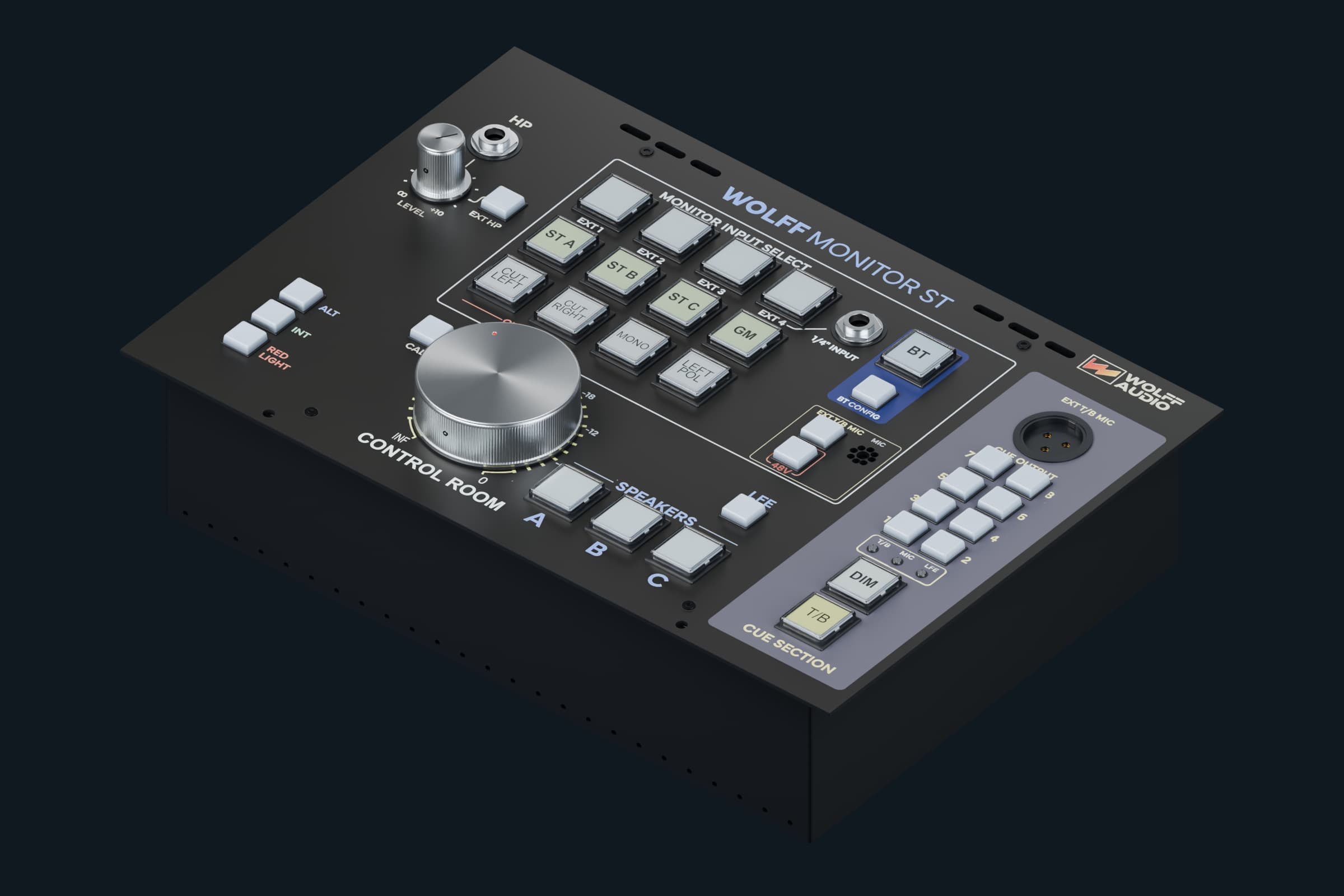

Wolff Monitor ST brings source selection, speaker switching, mix checks, and studio communication together in one tactile control surface.

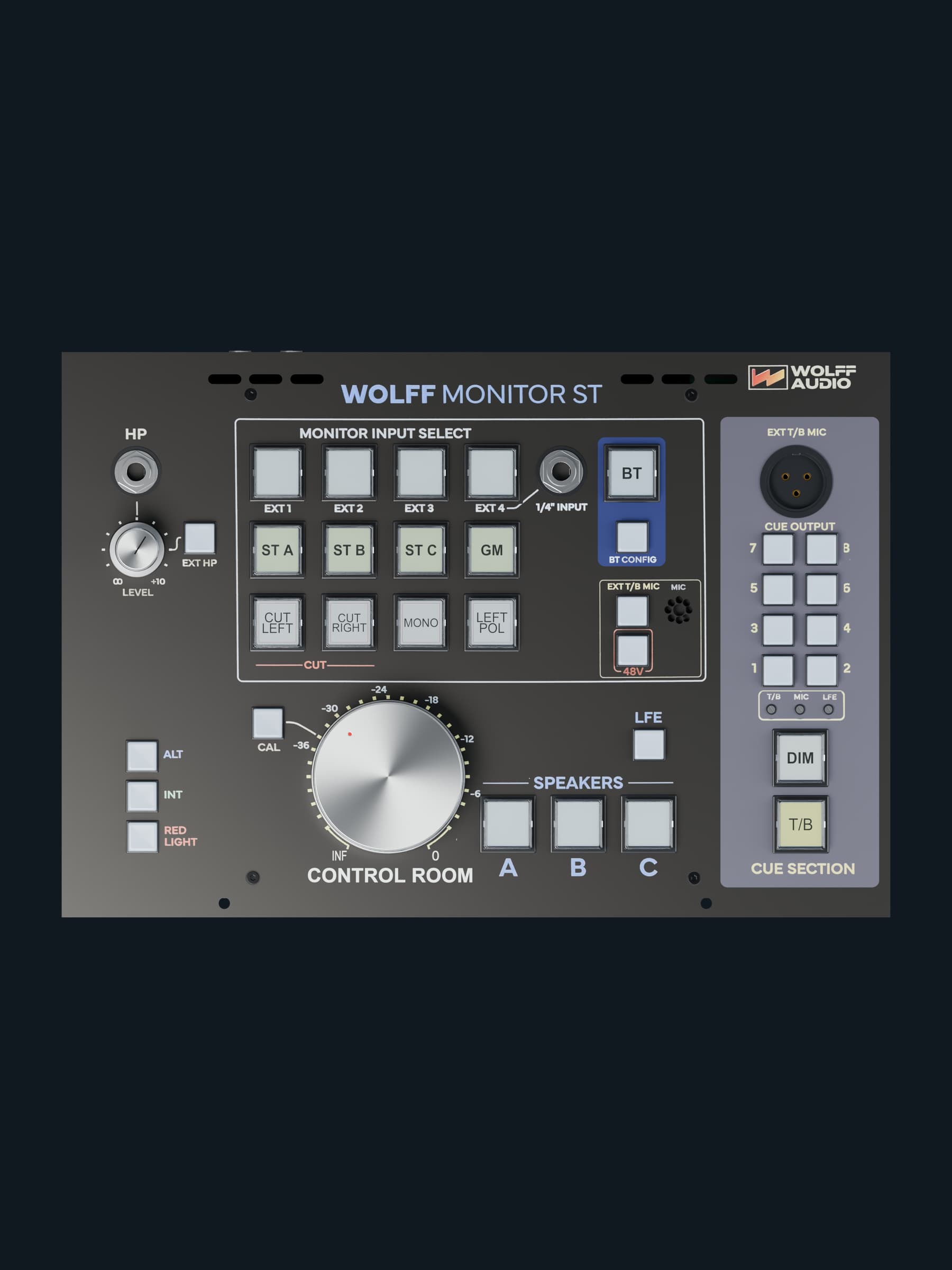

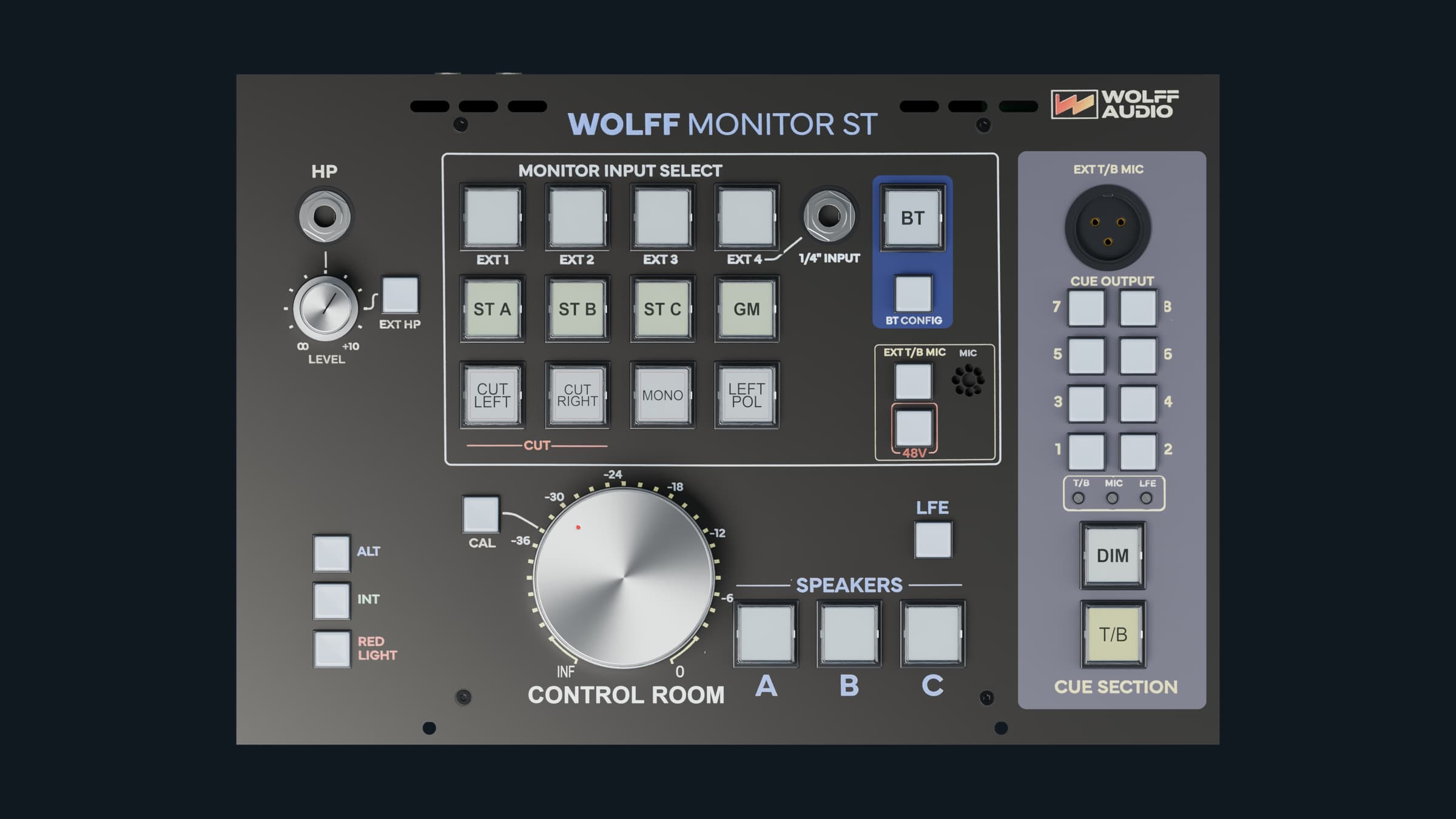

Get to know your Monitor ST
Select a control group to explore its function. Select it again to close.

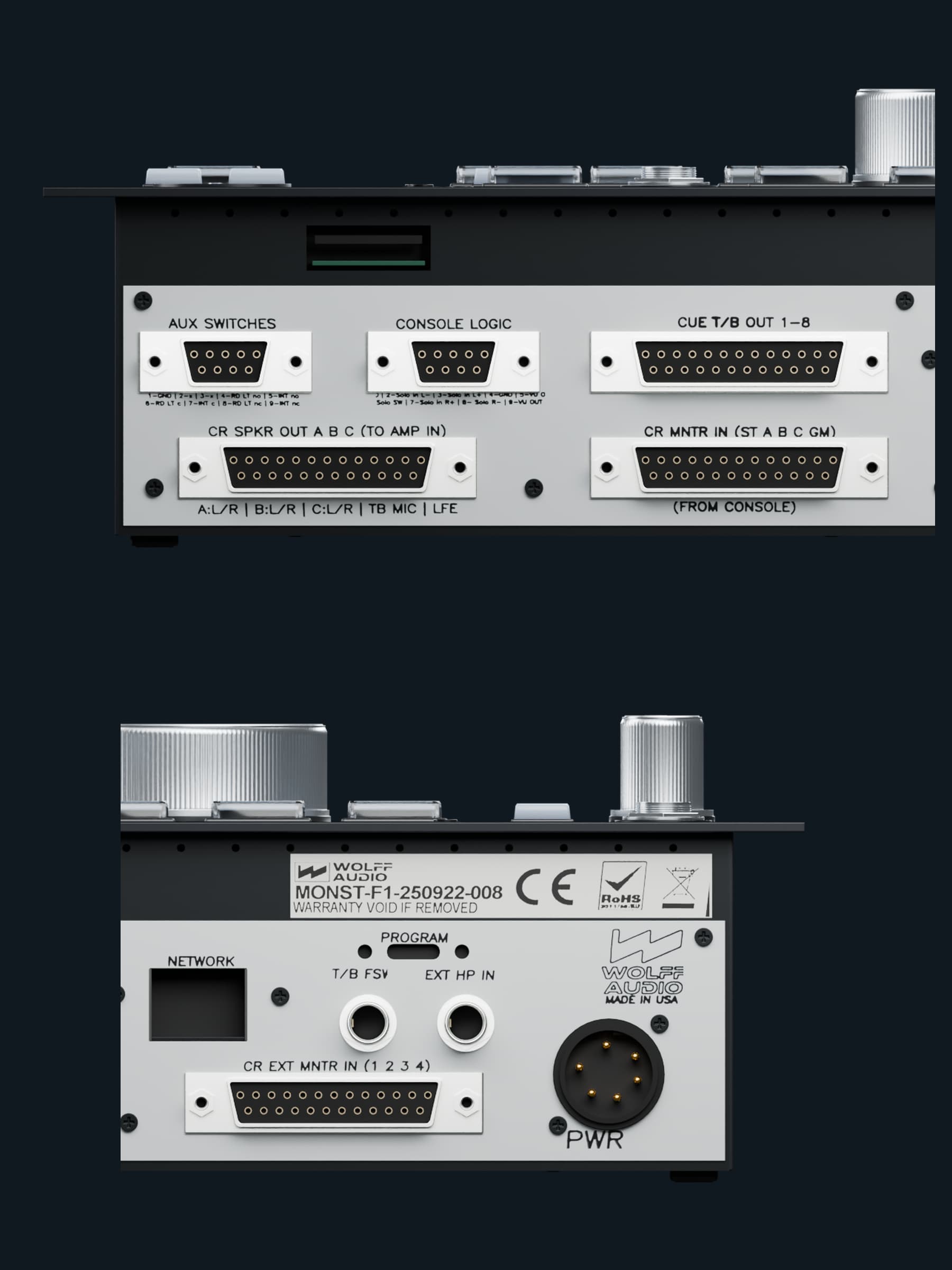

External connections
Select a rear-panel connection to explore its function. Select it again to close.
Built around the session
One place to make the next decision.
Move between sources, speaker checks, and artist communication with direct physical controls.

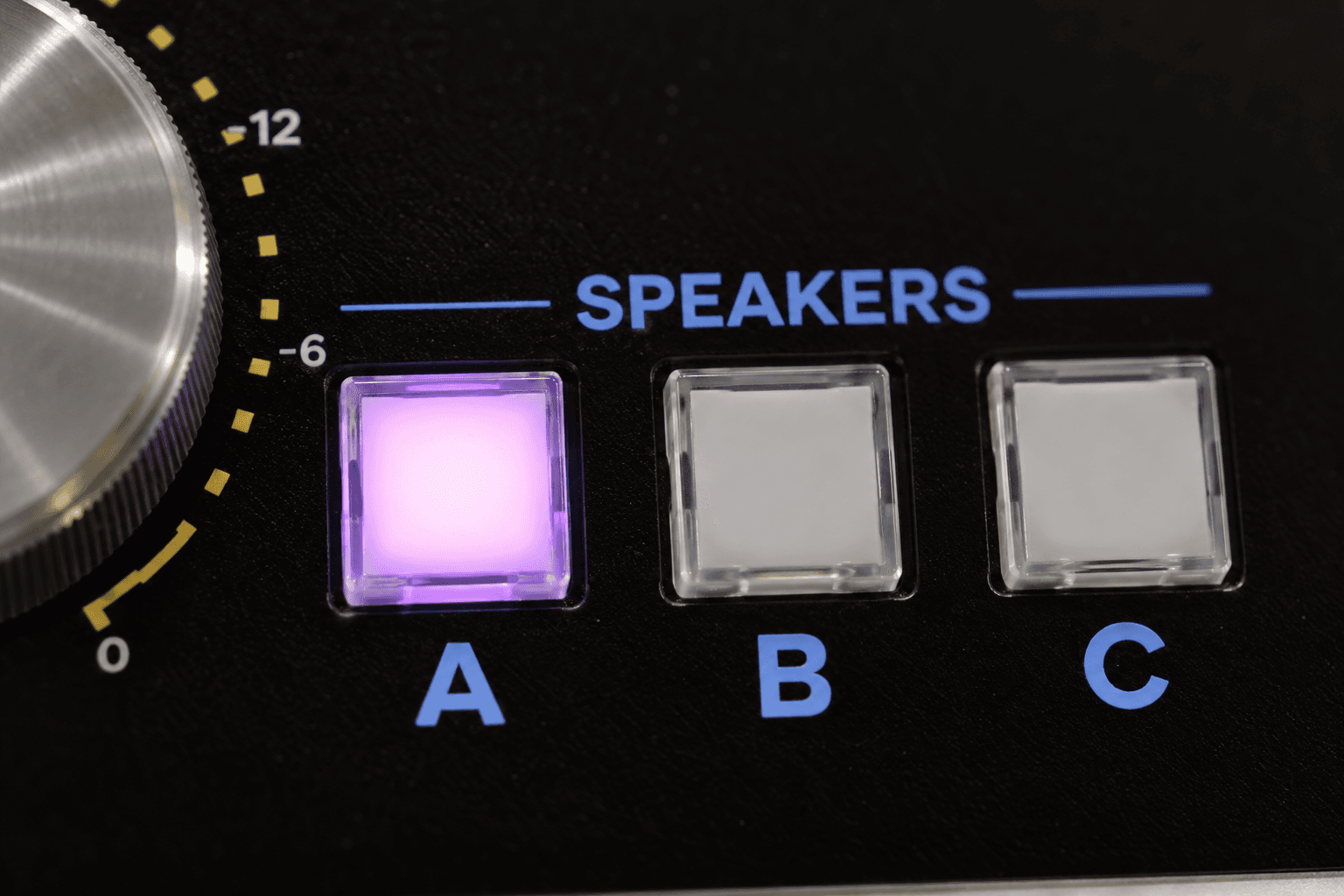

Speakers and mix checks
Hear the mix from every angle.
Switch between three speaker outputs with LFE selection remembered for each. Check individual channels, hardwired mono, and left polarity inversion before the next decision.

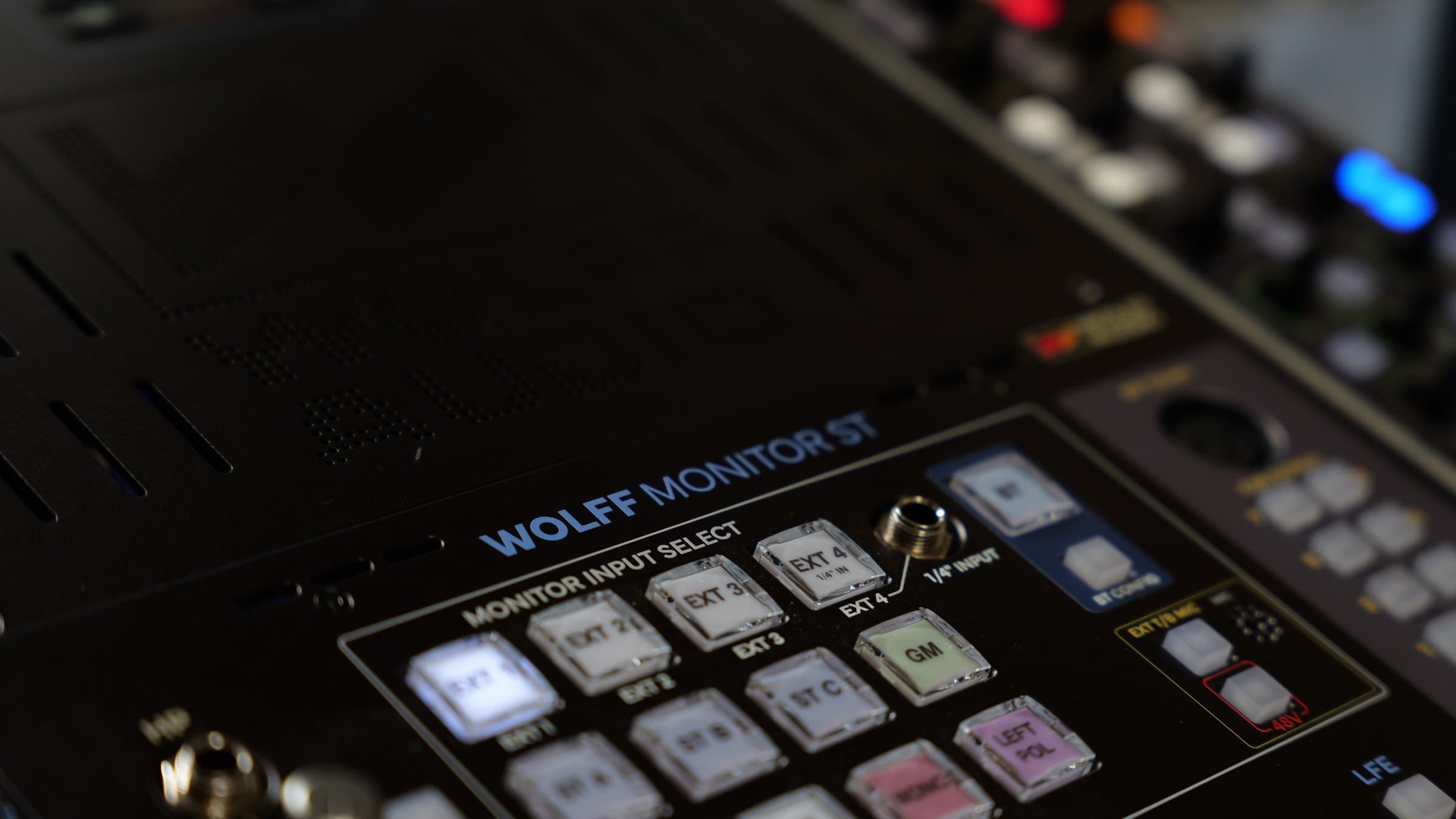

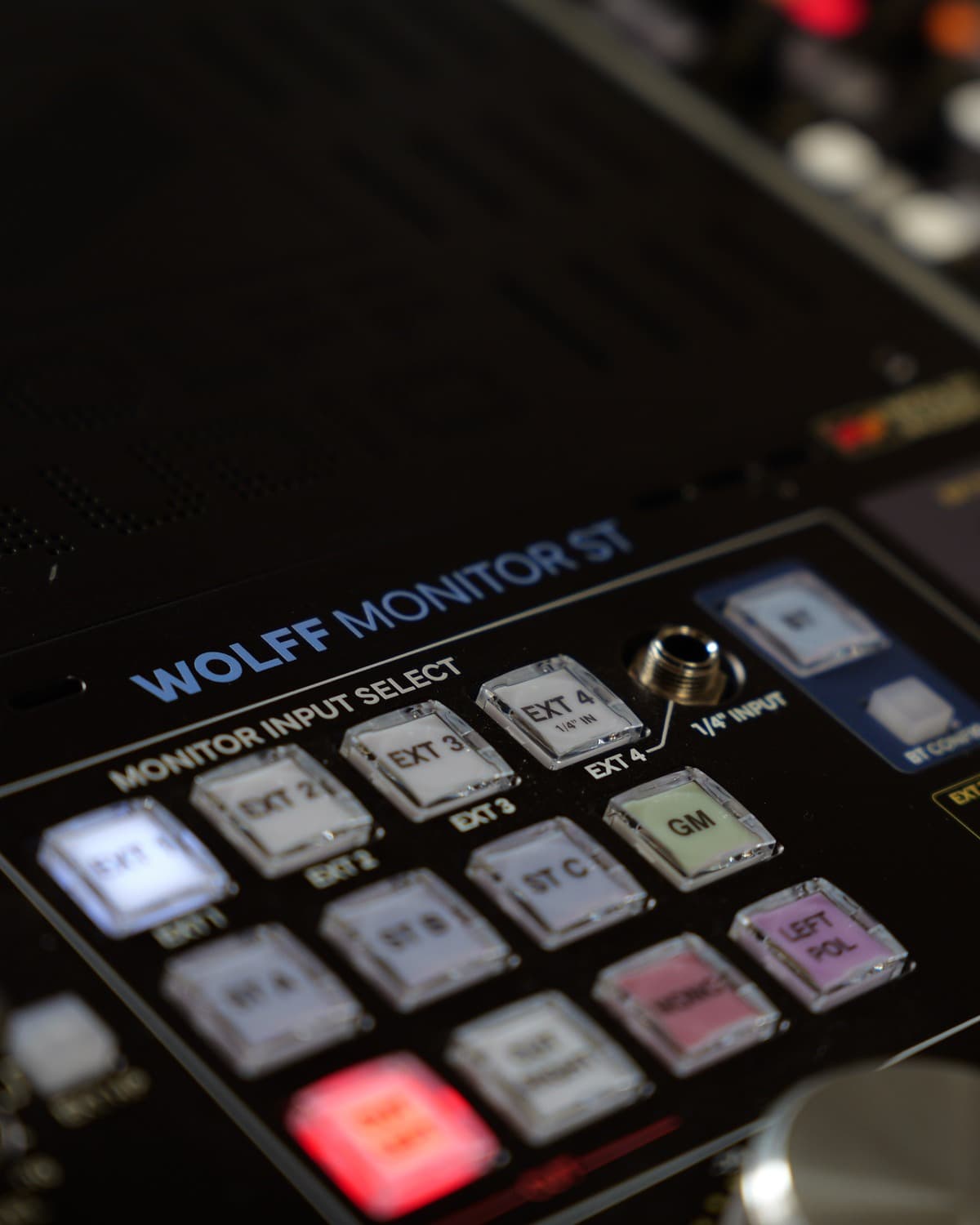

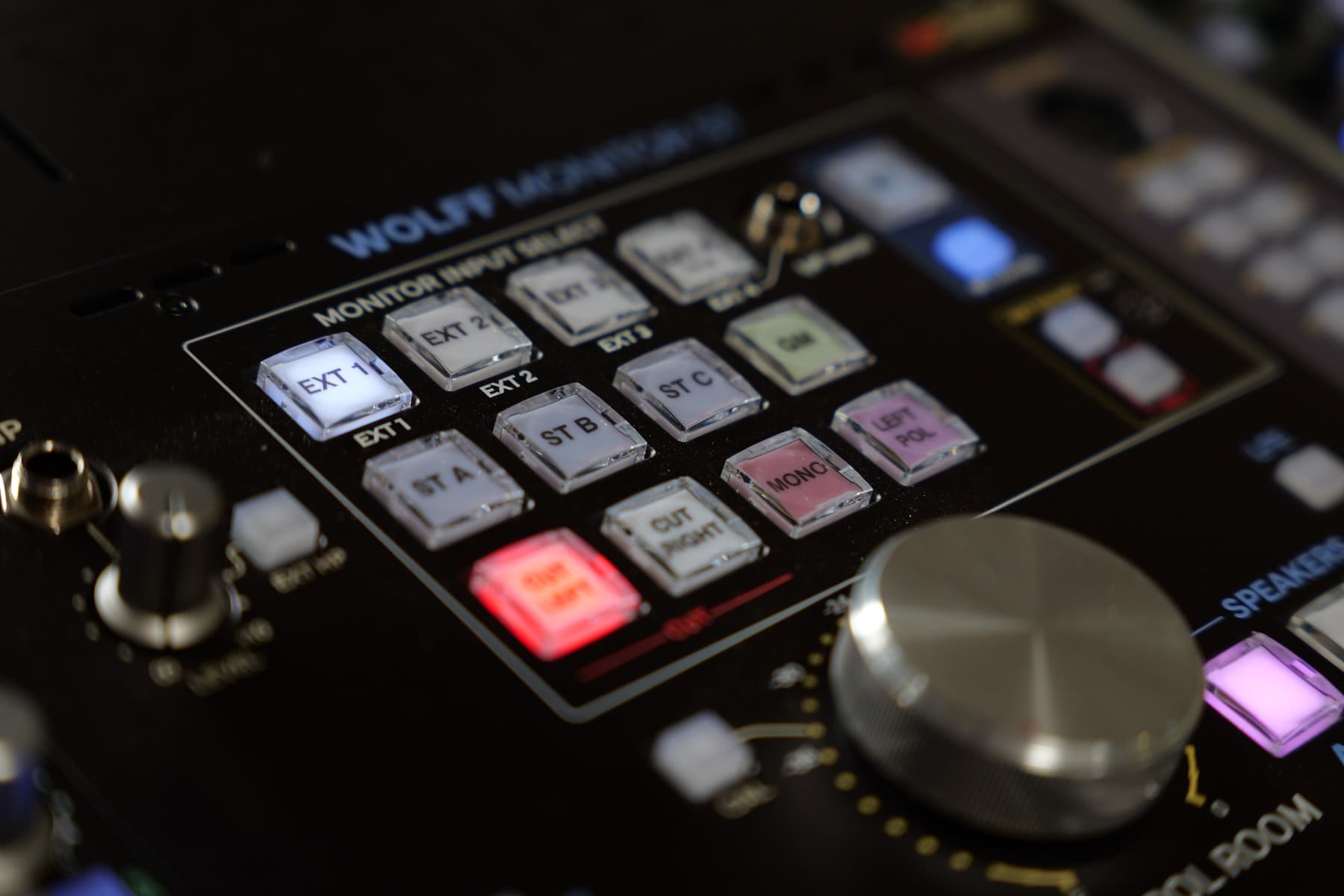

Sources and reference playback
Keep every source close.
Select among eight wired sources or combine inputs when you need to hear them together. Bluetooth brings quick reference playback from your phone into the same workflow.

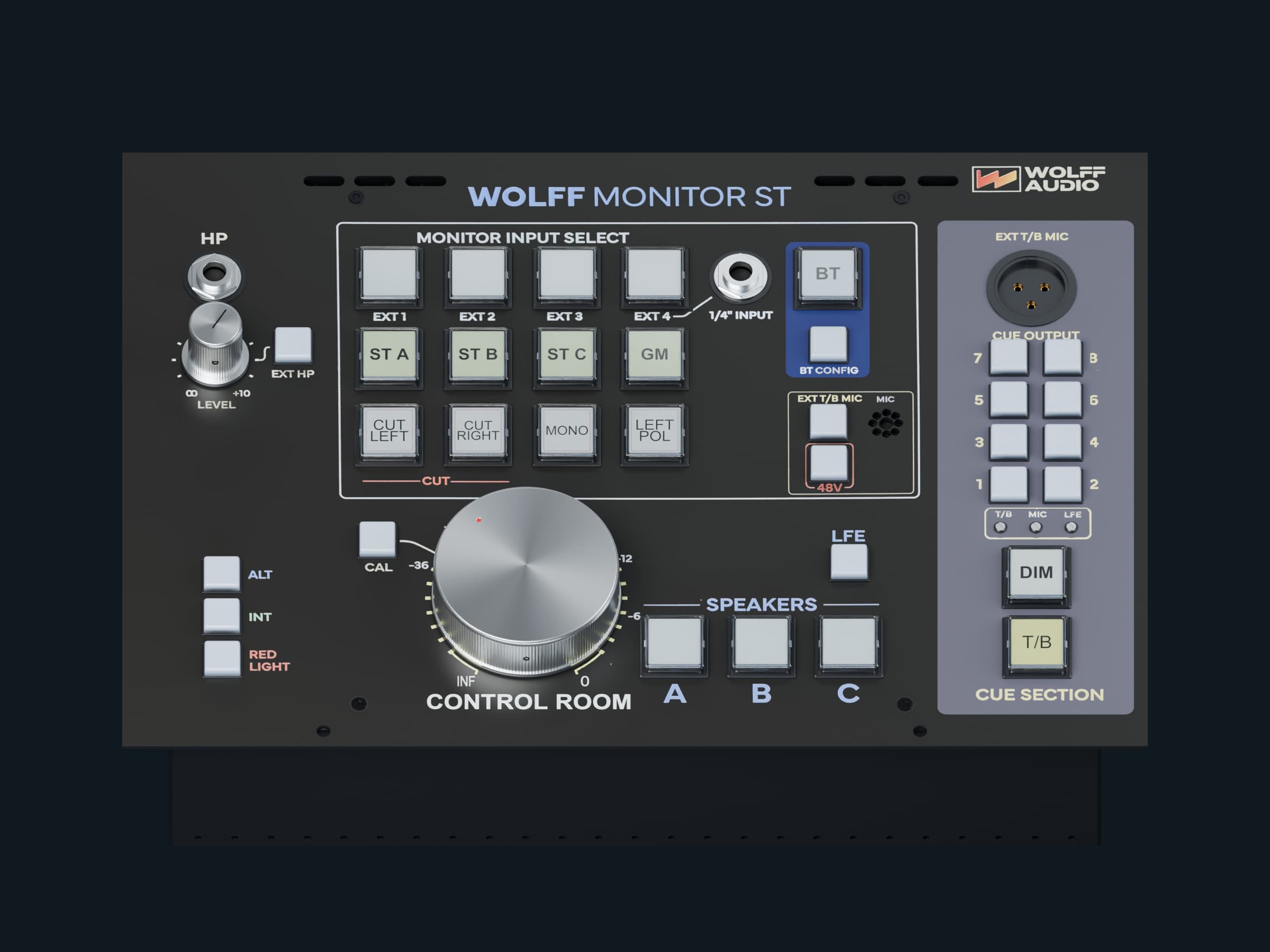

Talkback, cues, and headphones
Stay connected to the performance.
Built-in and external talkback, eight balanced cue outputs, and an integrated headphone amplifier keep the engineer and artist connected throughout the session.

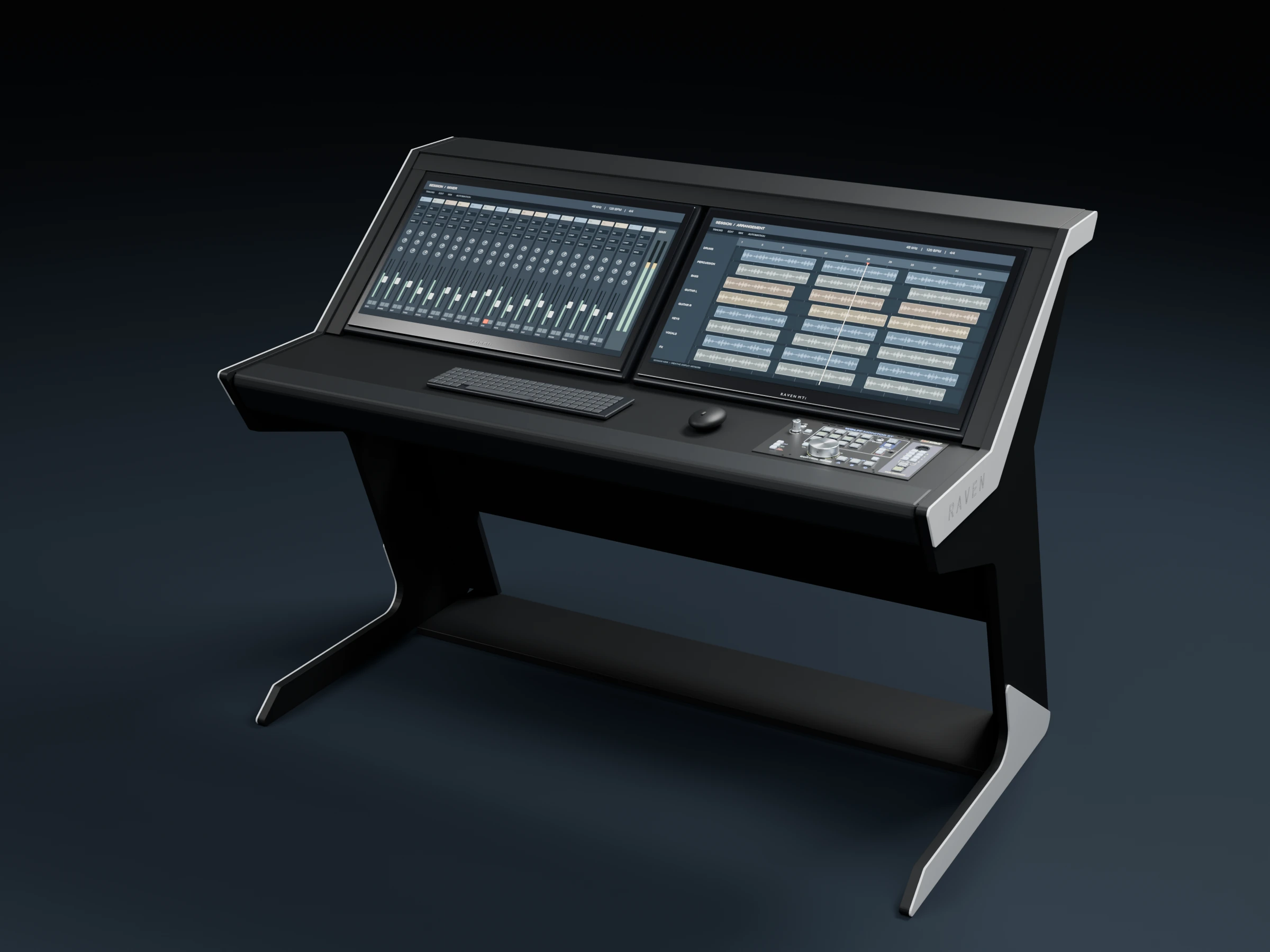

A perfect fit for your RAVEN CORE Station.

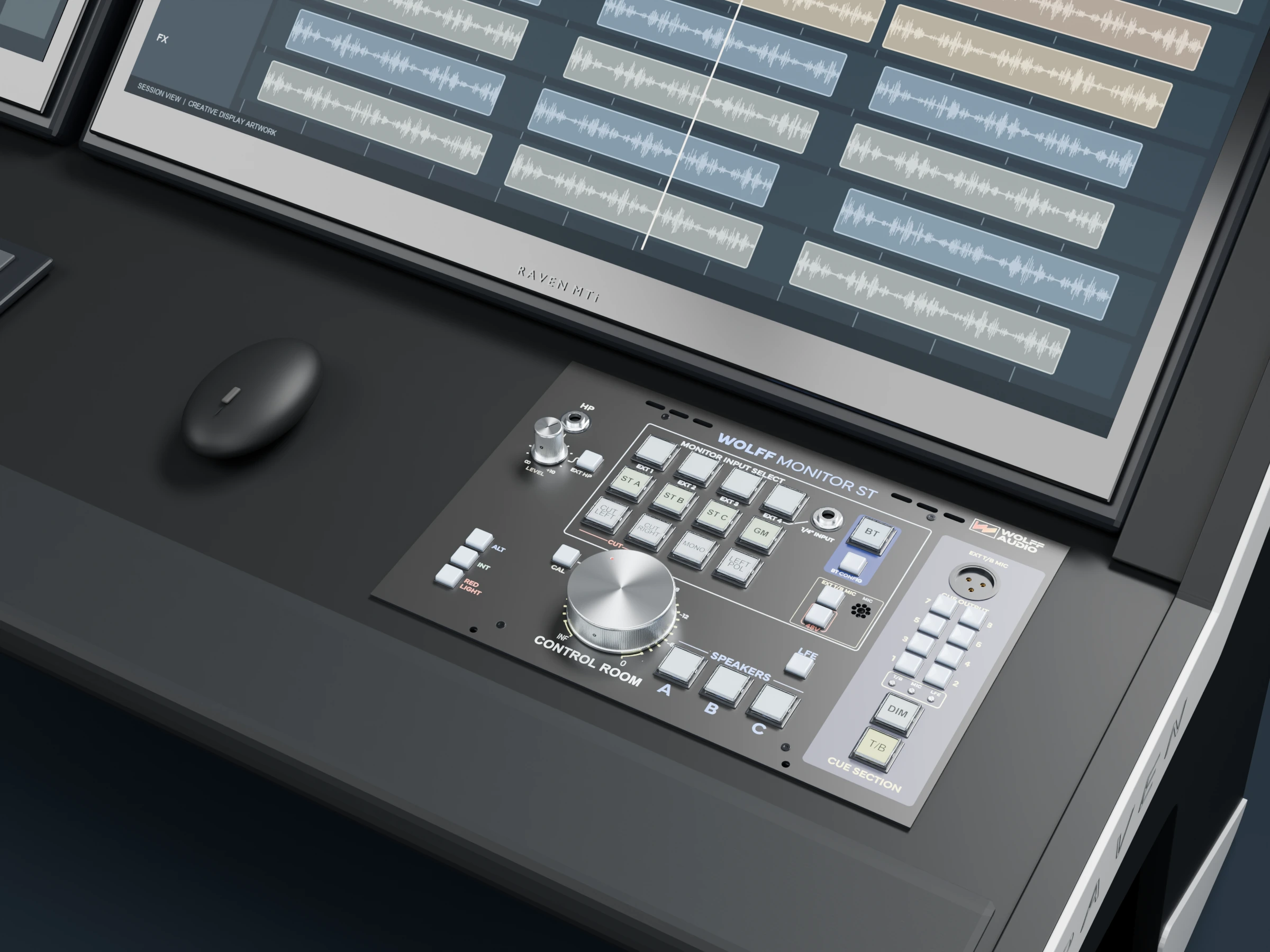

Bring Wolff monitoring to the center of your Steven Slate Audio RAVEN CORE Station. Monitor ST fits into the monitor-control opening, with a dedicated RAVEN turnaround board that keeps its connections accessible beneath the desktop.
Source selection, speaker switching, reference level recall, and talkback stay together at your fingertips.
Monitoring and session control
| Listening control | |
|---|---|
| Main level | Motorized control with relay-stepped gain |
| Reference recall | Store and recall a chosen listening level |
| Speaker selection | Three speaker outputs; LFE selection remembered for each |
| Sources and mix checks | |
| Wired sources | Eight sources, with selection and source summing |
| Wireless reference | Bluetooth playback with transport control |
| Mix checks | Left/right cut, hardwired mono, and left polarity inversion |
| Session communication | |
| Cue outputs | Eight balanced cue outputs |
| Talkback | Built-in and external microphone options, with cue presets and individual cue access |
| Headphones | Integrated headphone amplifier with an external headphone source input |

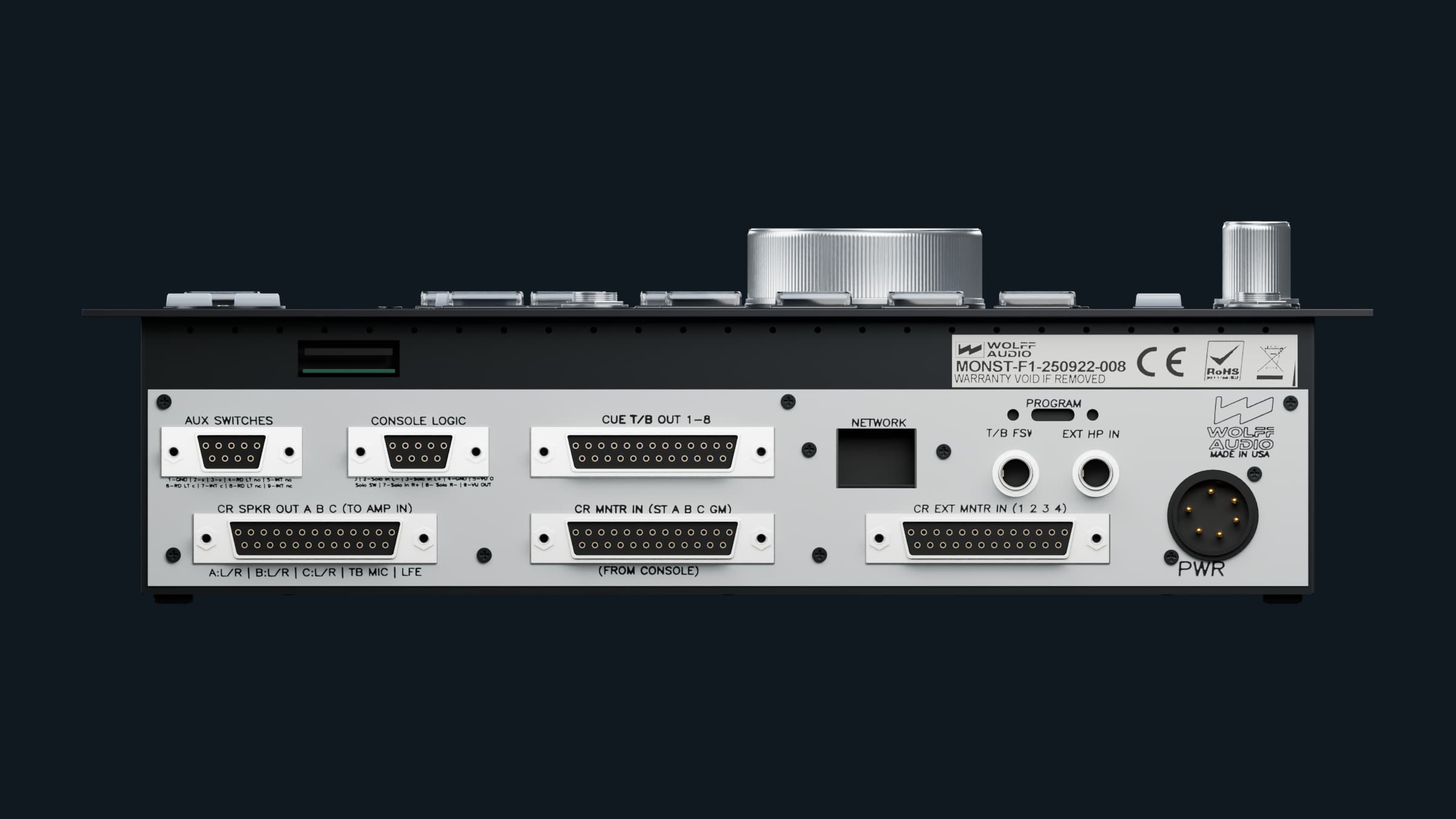

| External connections | |
| Console monitor inputs | DB25 connection for stereo A, B, C and Grand Master sources |
| External monitor inputs | DB25 connection for External 1–4; front-panel 1/4-inch access to External 4 |
| Speaker and utility outputs | DB25 carrying speaker pairs A, B and C, talkback direct output and LFE output |
| Cue / talkback outputs | Eight balanced outputs on DB25 |
| Console logic | DB9 for VU outputs, solo audio and console solo switching |
| Auxiliary switches | DB9 relay closures for intercom / auxiliary control and red light |
| Talkback footswitch | Rear 1/4-inch connection |
| External headphone source | Rear 1/4-inch input |
| Headphones | Front-panel 1/4-inch output with its own level control |
| External talkback microphone | Front-panel 3-pin XLR input with switchable 48 V phantom power |
| Power | Dedicated rear power connection |
A direct connection to the session.
Bring your studio into focus.
Talk with Wolff Audio about Monitor ST and your monitoring setup.
