COLLABORATOR
High definition, four channel headphone amp with individual level controls.
| COLLABORATOR
| COLLABORATOR
Clarity, power, control and flexibility.

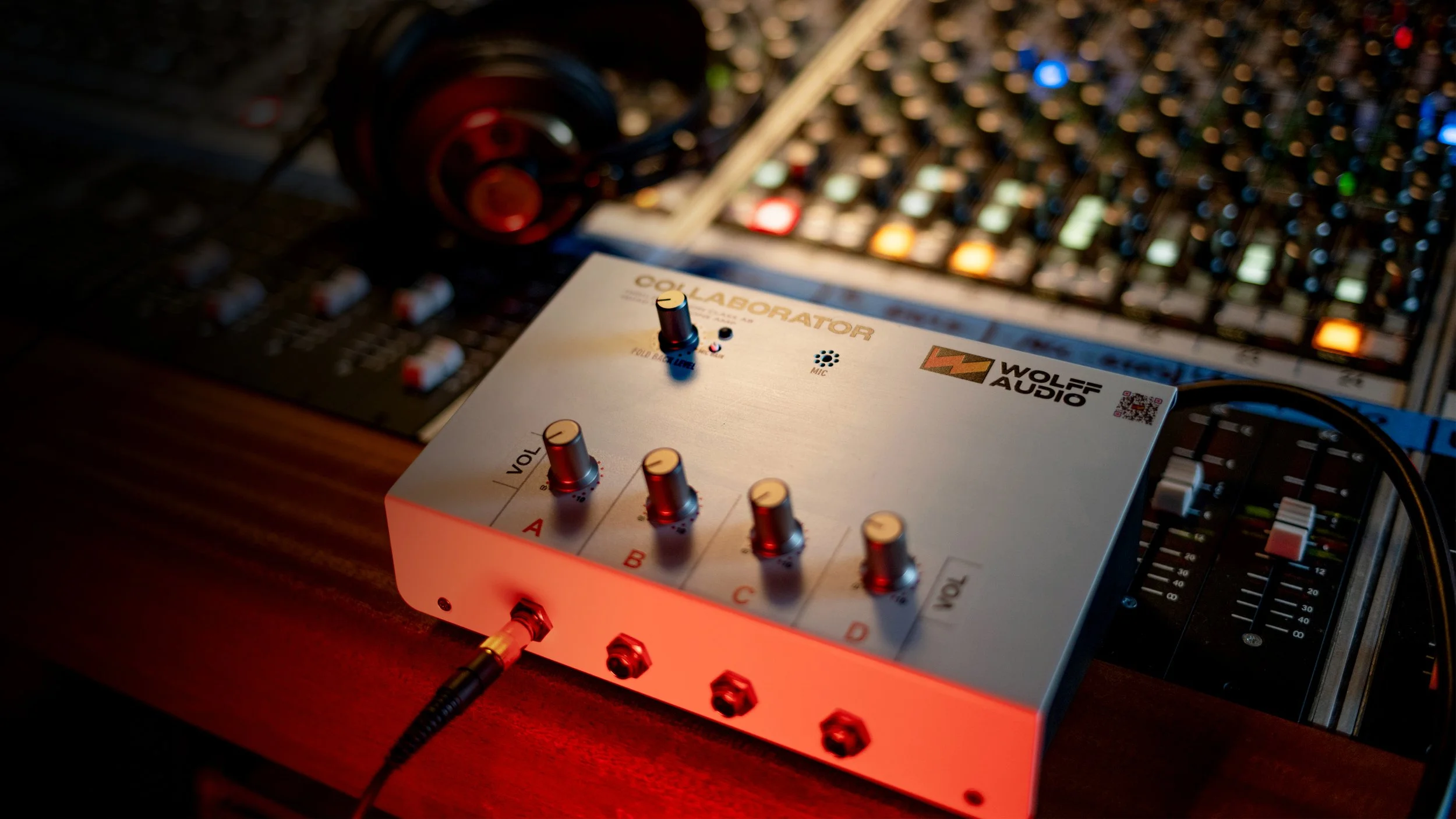

The Collaborator is a high-definition reference headphone amplifier system that’s built like a brick — house. It has four powerful analog high-definition headphone amplifiers in a solid steel enclosure. Included is a “HearMe” foldback mic.
Each headphone amp has its own control and output. The external PSU delivers a healthy punch and copious headroom when needed.
The HearMe foldback mic feature located on the front panel includes a mic gain trim and foldback level control to feed the room mic signal into each headphone. This enables artist collaboration and helps maintain creative momentum without interruption.
Background singers won’t need to slide off their headphone to hear what’s happening in the room. The mic can be switched on/off with a footswitch. Drummers can blend as much room drum sound back into the mix as preferred. Collaborator is easy to use and it streamlines the group creative process.
A rear panel TRS headphone level input is provided for combining multiple Collaborators to expand the number of headphone outputs needed. This supports larger groups such as choirs, horn sections or full orchestra. Additional rear panel audio Inputs are full scale +4dBu on XLR. A rear panel standard sustain foot switch jack is used for TalkBack mic activation.
Create an atmosphere of efficiency with your Collaborators.
4-CH REFERENCE HEADPHONE AMPLIFIER
SPECIFICATIONS
4-channel headphone amplifier with dedicated Level controls and outputs
Integrated HearMe foldback mic feeds the room mic signal into each set of headphones
Standard 5-pin external power supply, same as our 500 series supply.
Mic Gain trim and Foldback Level knob fine-tunes the room mic signal
Rear-panel TRS Headphone Level Input jack allows for easy system expansion
External power supply yields maximum punch and headroom
Full-scale +4dBu XLR Input jacks ensure optimal sound quality
Robust solid-steel enclosure
Signal from one Collaborator can be combined with other Collaborators to expand the system via the TRS headphone level input.
WHAT’S IN THE BOX?
Mic Stand Adaptors
Industry standard 500 power supply with IEC cable
Headphone holder
Drink holder
Optimal stand
OPTIONAL ACCESSORIES:
SHIPPING WEIGHT
6 LBS
